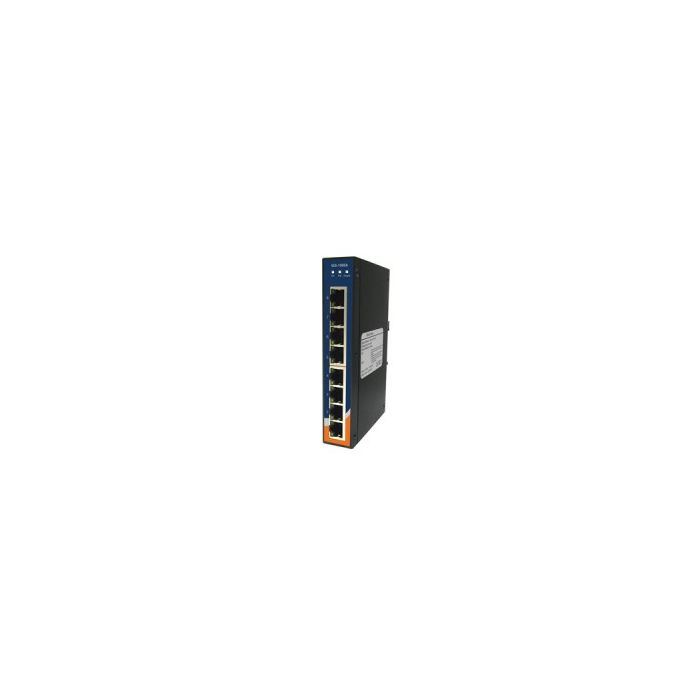

IES-1080A - 8 port umanaged switch

8x10/100Base-T(X) ports. IES-1080 series support redundant power input, relay output alarm, surge protection, wide operating temperature range from -40° to 70°C.

In stock

SKU
IES-1080A
$146.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IES-1080A - 8 port umanaged switch

  • Support 8 ports 10/100Base-T(X)

  • Support auto-negotiation and auto-MDI/MID-X
  • Support Store and forward transmission
  • Support flow control
  • Provide Relay output
  • Compact size for easily installation
  • Rigid IP-30 housing design
  • DIN-rail and wall mounting enable

More Information

Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
MAC Table 1K
Packet buffer 448K bits
Processing Store-and-Forward
Switch Properties Switching latency: 7us
Switching bandwidth: 1.6Gbps
Throughput (packet per second): 1.19Mpps@64Bytes packet
LED Indicators
Power Indicator Green : Power LED x 2
Fault Indicator Amber : Indicates PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator Upper LED for Link/Act indicator: Green for Link/Act
Lower LED for duplex indicator, Amber for full duplex, off for half duplex
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Dual 12~48VDC on 6-pin terminal block
Power Consumption (Typ.) <3.7Watts, 0.23A-0.07A
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
Weight (g) 391 g
Hardware Version V2.0
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMC CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1(LVD)
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) 2,439,118hrs
Warranty 5 years
Description

  • Support 8 ports 10/100Base-T(X)

  • Support auto-negotiation and auto-MDI/MID-X
  • Support Store and forward transmission
  • Support flow control
  • Provide Relay output
  • Compact size for easily installation
  • Rigid IP-30 housing design
  • DIN-rail and wall mounting enable
