8x10/100Base-T(X) and 2x1000Base-X in SFP ports. IES-1082GP supports redundant power input, relay output alarm, surge protection and wide operating temperature range from -40° to 70°C.
In stock
SKU
IES-1082GP
Have a Question about this product?
Description /

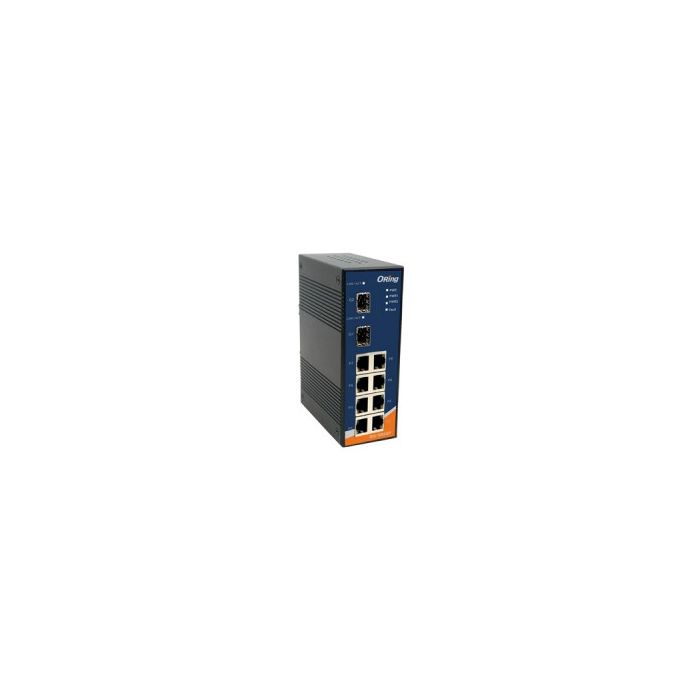

IES-1082GP - 10 port unmanaged switch
Triple redundant DC power inputs of terminal block and power jack
Provide 8x10/100Base-T(X) and 2x1000Base-X SFP ports
Supports auto-negotiation and auto-MDI/MDI-X
Supports store-and-forward transmission
Supports flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
8
1000Base-X SFP ports
2
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control
MAC Table
8192 MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED x 3
Fault Indicator
Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-T(X) RJ45 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision
1000Base-X SFP Port Indicator
Green for port Link/Act.
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
