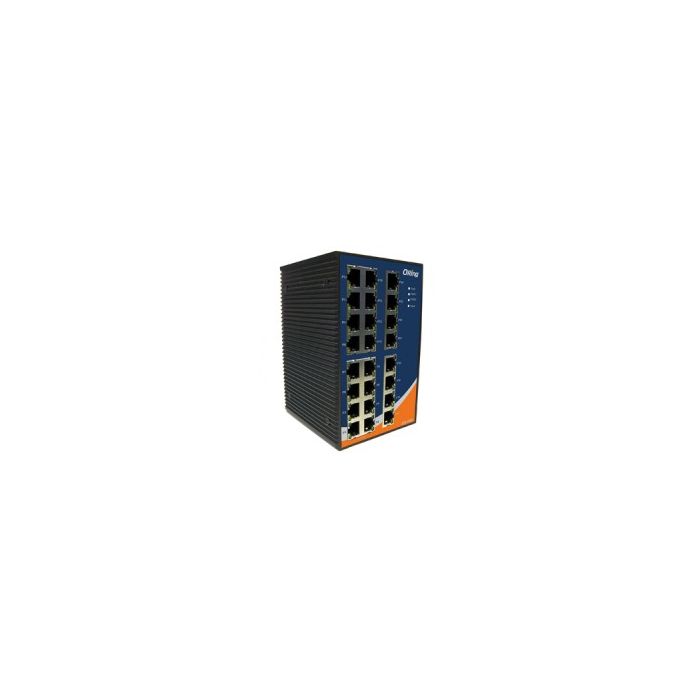

IES-1240 - 24 port unmanaged switch

24x10/100Base-T(X) port. IES-1240 support redundant power inputs, relay output alarm, surge protection and wide operating temperature range from -40°C to 70°C.

In stock

SKU
IES-1240

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IES-1240 - 24 port unmanaged switch

  • RJ-45 ports support Auto MDI/MDI-X switching function
  • Provides Store-and-Forward switching architecture
  • Provides 4.8Gbps Back-plane (Switching Fabric)
  • Warning system by relay output
  • Rigid IP-30 housing design
  • DIN-Rail and walll mounting enabled

More Information

Specifications
Physical Ports

10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX

 24
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switch Properties Switching latency: 9 μs
Switching bandwidth: 4.8Gbps
LED Indicators
Power Indicator Green : Power LED x 3
Fault Indicator Amber : Indicates power failure occurred
10/100Base-T(X) RJ45 Port Indicator Green for port Link/Act. Amber for Duplex/Collision
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12 ~ 48VDC on 6-pin terminal block
Power Consumption (Typ.) 9.6 Watts
Overload Current Protection Present
Reverse Polarity Protection Present on terminal block
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 96.4(W)x108.5(D)x154(H) mm (3.8 x 4.27 x 6.06 inch)
Weight (g) 1052 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years


Description
  • RJ-45 ports support Auto MDI/MDI-X switching function
  • Provides Store-and-Forward switching architecture
  • Provides 4.8Gbps Back-plane (Switching Fabric)
  • Warning system by relay output
  • Rigid IP-30 housing design
  • DIN-Rail and walll mounting enabled
pdf
Datasheet
