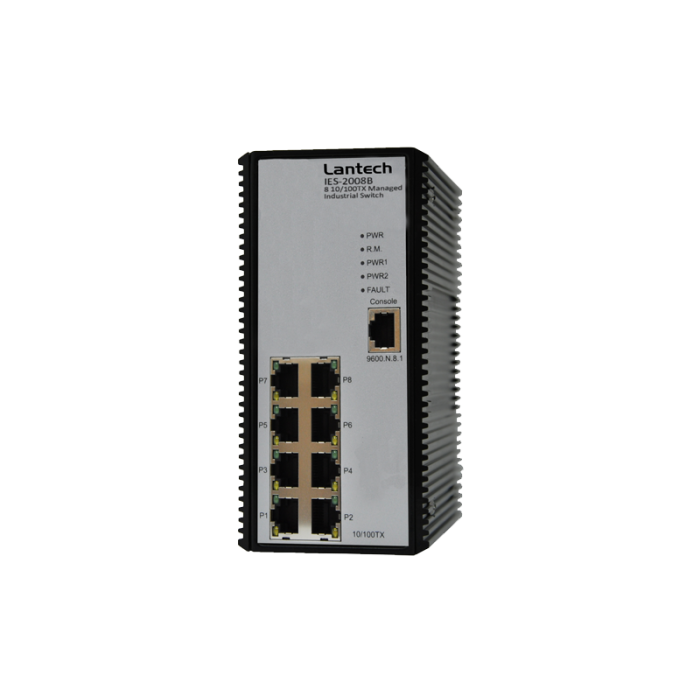

Shop IES-2008B - 8 port managed switch

- UL Class I Division II for Group A,B,C and D certified
- ATEX Directive 94/9/EC certified (-ATEX model)
- Pro-Ring2se for self-heal ring <20ms

In stock

SKU: IES-2008B

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IES-2008B - 8 port managed switch

_{IEEE Standards}	_{IEEE802.3 10Base-T Ethernet} _{IEEE802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.3af Power over Ethernet} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.1x User Authentication (Radius)} _{IEEE802.1ab LLDP}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Packet Buffer}	_1Mbits
_{MAC Address}	_{8K MAC address table}
_{Flash ROM}	_4Mbytes
_DRAM	_32Mbytes
_Connectors	_{10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function} _{RS-232 connector: RJ-45 type}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)} _{8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)}
_{Power Supply}	_{12V~48VDC(9V~56VDC);Redundant power connector removable terminal block for master and slave power}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{Standard: -20°C~60°C / -4°F~140°F} _{Wide Operating Temperature (-E / -ATEX / -DNV model):} _{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{IP-30, 74(W) x 114 (D) x 152 (H) mm}
_Weight	_{850 g}
_{Fan Number}	₀
_Installation	_{Wall mount or DIN-type cabinet install}
_{EMI & EMS}	_{FCC Class A, CE EN61000-4-2,} _{CE EN61000-4-3, CE EN61000-4-4,} _{CE EN61000-4-5, CE EN61000-4-6,} _{CE EN61000-4-8, CE EN61000-4-11,} _{CE EN61000-4-12, CE EN61000-6-2,} _{CE EN61000-6-4}
_Safety	_{UL 60950} _{UL Class I Division II for Group A,B,C and D hazardous location} _{ATEX Directive 94/9/EC (-ATEX model)}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_{Power Consumption}	_{7 W at full load}
_Warranty	_{5 years}

More Information

Description

_{IEEE Standards}	_{IEEE802.3 10Base-T Ethernet} _{IEEE802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.3af Power over Ethernet} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.1x User Authentication (Radius)} _{IEEE802.1ab LLDP}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Packet Buffer}	_1Mbits
_{MAC Address}	_{8K MAC address table}
_{Flash ROM}	_4Mbytes
_DRAM	_32Mbytes
_Connectors	_{10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function} _{RS-232 connector: RJ-45 type}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)} _{8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)}
_{Power Supply}	_{12V~48VDC(9V~56VDC);Redundant power connector removable terminal block for master and slave power}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{Standard: -20°C~60°C / -4°F~140°F} _{Wide Operating Temperature (-E / -ATEX / -DNV model):} _{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{IP-30, 74(W) x 114 (D) x 152 (H) mm}
_Weight	_{850 g}
_{Fan Number}	₀
_Installation	_{Wall mount or DIN-type cabinet install}
_{EMI & EMS}	_{FCC Class A, CE EN61000-4-2,} _{CE EN61000-4-3, CE EN61000-4-4,} _{CE EN61000-4-5, CE EN61000-4-6,} _{CE EN61000-4-8, CE EN61000-4-11,} _{CE EN61000-4-12, CE EN61000-6-2,} _{CE EN61000-6-4}
_Safety	_{UL 60950} _{UL Class I Division II for Group A,B,C and D hazardous location} _{ATEX Directive 94/9/EC (-ATEX model)}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_{Power Consumption}	_{7 W at full load}
_Warranty	_{5 years}
