6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100BaseFX ports with wide operating temperature range from -40°C to 70°C.
In stock
SKU
IES-2042FX-xx
Have a Question about this product?
Description /

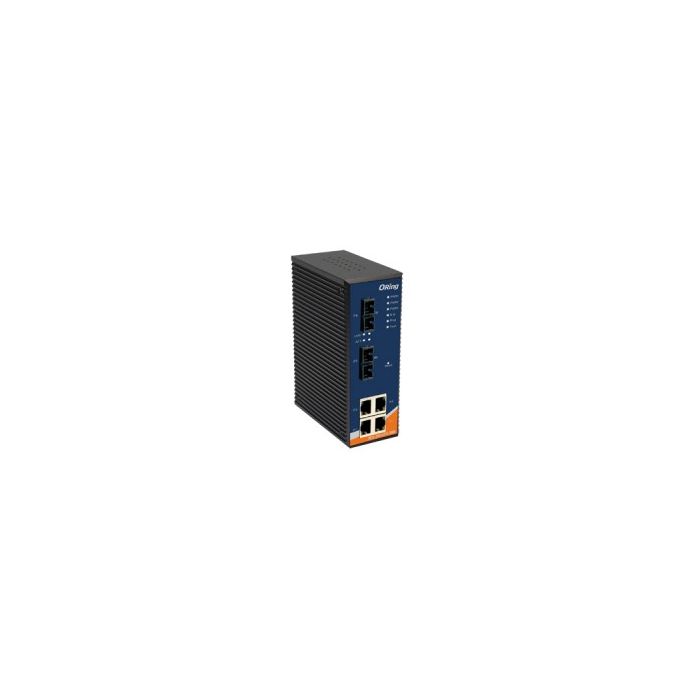

IES-2042FX Series - 6 port lite managed switch
Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring supports other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
Provides Fast recovery technology for Ethernet multi-redundancy
SNMP v1/v2c/v3 ,http server, telnet server support
Supports LLDP protocol
Configurable by Web-based and Windows utility (Open-Vision)
Event notification through Syslog, Email, and SNMP trap
Two 100Base-FX fiber ports support for long distance connection
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
4
Fiber Ports Number
2
2
Fiber Ports Standard
100Base-FX
100Base-FX
Fiber Mode
Multi-mode
Single-mode
Fiber Diameter (μm)
62.5/125 μm 50/125 μm
9/125 μm
Fiber Optical Connector
SC
SC
Typical Distance (km)
2 km
30 km
Wavelength (nm)
1310 nm
1310 nm
Max. Output Optical Power (dBm)
-14 dBm
-8 dBm
Min. Output Optical Power (dBm)
-23.5 dBm
-15 dBm
Max. Input Optical Power (Saturation)
0 dBm
0 dBm
Min. Input Optical Power (Sensitivity)
-31 dBm
-34 dBm
Link Budget (dB)
7.5 dB
19 dB
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)v1.41 / Dec, 2011
MAC Table
1024 MAC addresses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching bandwidth : 1.2Gbps VLAN : Port Based
Security Featues
Enable/disable ports VLAN to segregate and secure network traffic
Software Features
STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units DHCP Client Port base VLAN LLDP (Link Layer Discovery Protocol) Port configuration, status, statistics, monitoring, security SNMP v1/v2c/v3 and private MIB support
Network Redundancy
O-Ring Open-Ring O-Chain Fast Recovery STP RSTP
LED Indicators
Power Indicator
Green : Power LED x 3
Ring Master Indicator (R.M.)
Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)
Green : Indicates that the system is operating in O-Ring mode
Fault Indicator (Fault)
Amber : Indicates unexpected events occurred
10/100Base-T(X) RJ45 Port Indicator
Green for port Link/Act. Amber for Link
100 Base-FX Fiber Port Indicator
Green for port Link/Act. Amber for Link
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Triple DC inputs: 12 ~ 48 VDC on 7-pin terminal block, 12 ~ 45 VDC on power jack
Power Consumption (Typ.)
7 Watts
7 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present on terminal block
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
54.2(W) x 106.1(D) x 145.4(H) mm (2.13x4.18x5.72 inch.)
