4x10/100Base-T(X) and 2x100Base-FX, SFP socket. IES-2042PA provides rigid IP-30 housing design and wide operating temperature range from -40oC to 70oC.
In stock
SKU
IES-2042PA
Have a Question about this product?
Description /

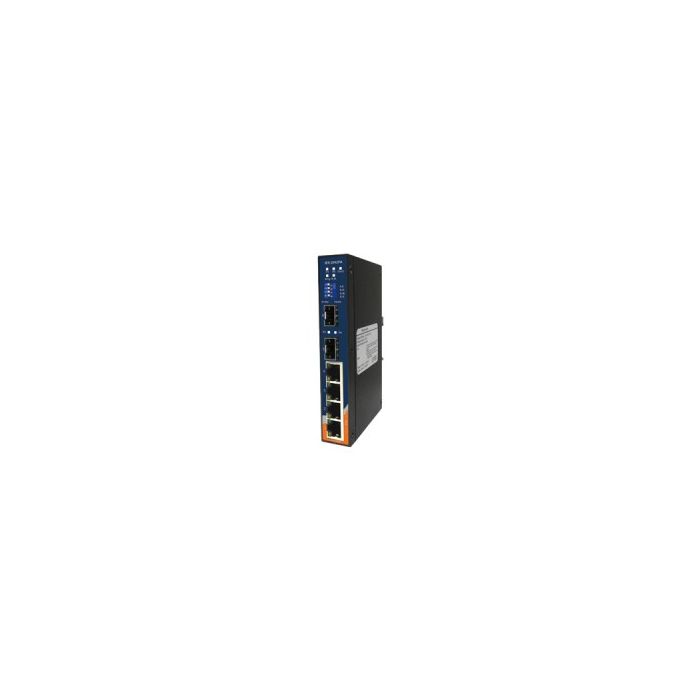

IES-2042PA - 6 port slim style, managed switch
Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Supports 4 ports 10/100Base-T(X) and 2 ports 100Base-FX SFP Port
SNMP v1/v2c/v3 ,http server, telnet server support
Web-based interface,telnet server and Windows utility (Open-Vision) configuration
Event notification through Syslog, Email, SNMP trap, and relay
Provides Web / Windows Utility / DIP-Switch function to set Ring
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Supports LLDP Protocol
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
4
100Base-FX SFP Ports
2
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table
1024 MAC addresses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching bandwidth : 1.2Gbps VLAN : Port Based
Security Features
Enable/disable ports VLAN to segregate and secure network traffic
Software Features
STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units DHCP Client Port base VLAN LLDP (Link Layer Discovery Protocol) Port configuration, status, statistics, monitoring, security SNMP v1/v2c/v3 and private MIB support
Network Redundancy
O-Ring Open-Ring O-Chain STP RSTP Fast Recovery
DIP-Switch Setting
P.F.
When power fault enable relay warning system (On : Enable, Off : Disable function)
R.E.
Enable/Disable O-Ring function (On : Enable, Off : Disable)
R.M.
Enable/Disable Ring Master Mode (On : Enable, Off : Disable)
R.S.
O-Ring redundant port select ( On : ring port set to port-5 and port-6, Off : ring port set to port-1 and port-2 )
LED Indicators
Power Indicator
Green LED x 2
R.M. Indicator
Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator
Green : Indicates port operated in O-Ring mode
Fault Indicator
Amber : Indicates unexpected event occurred
100Base-FX SFP Port Indicator
Green for port Link/Act
10/100Base-T(X) RJ45 Port Indicator
Green for port Link/Act. Amber for Link
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual 12~48 VDC power input at 6-pin terminal block
