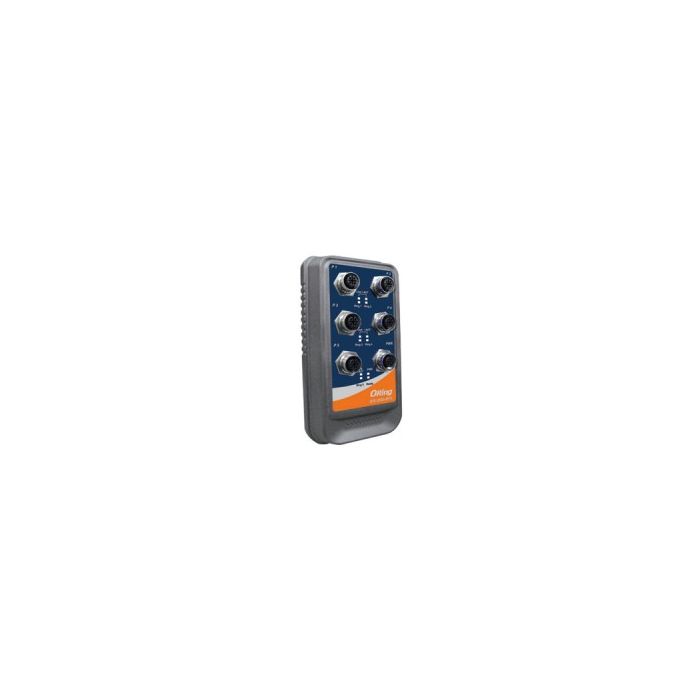

IES-2050-M12 is a waterproof lite-managed redundant ring ethernet switch with 5x10/100Base-T(X) ports which is fully compliant with IP-67 standards.
In stock
SKU
IES-2050-M12
Have a Question about this product?
Description /
IES-2050-M12 - 5 port lite managed switch
Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Waterproof M12 connector (A-coding)
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
SNMP v1/v2c/v3 support for secured network management
Configurable by Web-based and Windows utility (Open-Vision)
Supports 5 ports 10/100Base-T(X)
More Information
Specifications
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX
5
Connector Type
M12 Waterproof (A-coding)
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table
2048 MAC addressessses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching bandwidth : 1.0Gbps VLAN : Port Based
Security Features
Enable/disable ports VLAN to segregate and secure network traffic SNMPv3 encrypted authentication and access security
Software Features
STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units Port configuration, status, statistics, monitoring, security
Network Redundancy
O-Ring Open-Ring O-Chain Fast recovery STP RSTP
LED Indicators
Power
Green : Power LED x 1
Ready / Ring Master Indicator
Amber LED : Light on for system ready Light off for system faile
O-Ring Indicator
Amber : Indicate port operated in O-Ring mode (per port)
