6x10/100Base-T(X) and 2x100Base-FX, 10/100/1000Base-T(X), 1000Base-SX or 1000Base-LX ports with wide operating temperature range from -40 to 70°C and C1D2/ATEX certified.
In stock
SKU
IES-A1062GT
Have a Question about this product?
Description /

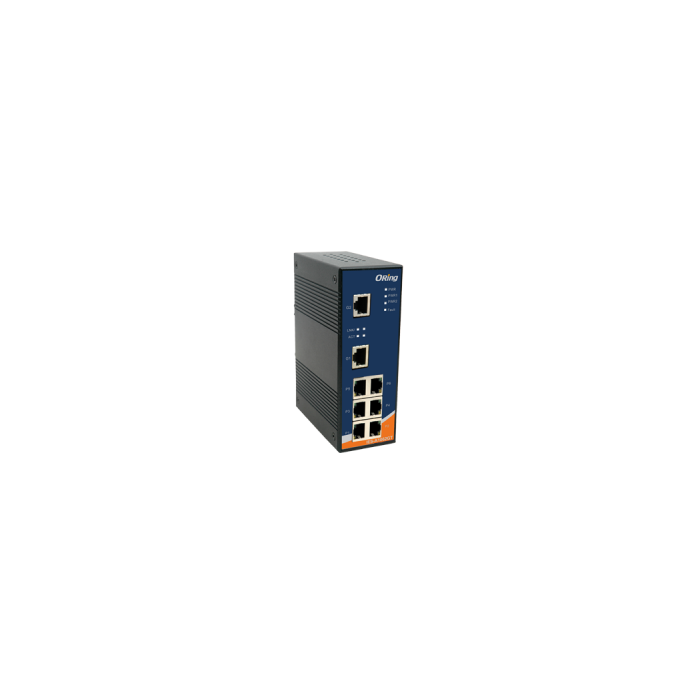

IES-A1062GT - 8 port unmanaged switch
C1D2 and ATEX compliant for harsh industrial environments application
IES-A1062GT provide 6x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports
Triple redundant DC power inputs of terminal block and power jack
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Rigid IP-30 aluminum housing design
DIN-Rail and wall mounting enabled
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
6
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
2
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control
MAC Table
8192 MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED x 3
Fault Indicator
Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-FX RJ45 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision
10/100/1000Base-T(X) / Fiber Port Indicator
Green for port Link/Act. Amber for Link
Power
Redundant Input Power
Triple DC inputs : Dual 12~48VDC on 7-pin terminal block One 12~48VDC on power jack (power jack cannot use in hazardous location application)
Power Consumption (Typ.)
7 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present on terminal block
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
52(W) x 106.1(D) x 144.3(H) mm (2.05x4.18x5.68 inch.)
