6x10/100Base-T(X) and 2x10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX or 1000Base-LX ports with wide operating temperature range from -40 to 70°C.
In stock
SKU
IES-A3062GT
Have a Question about this product?
Description /

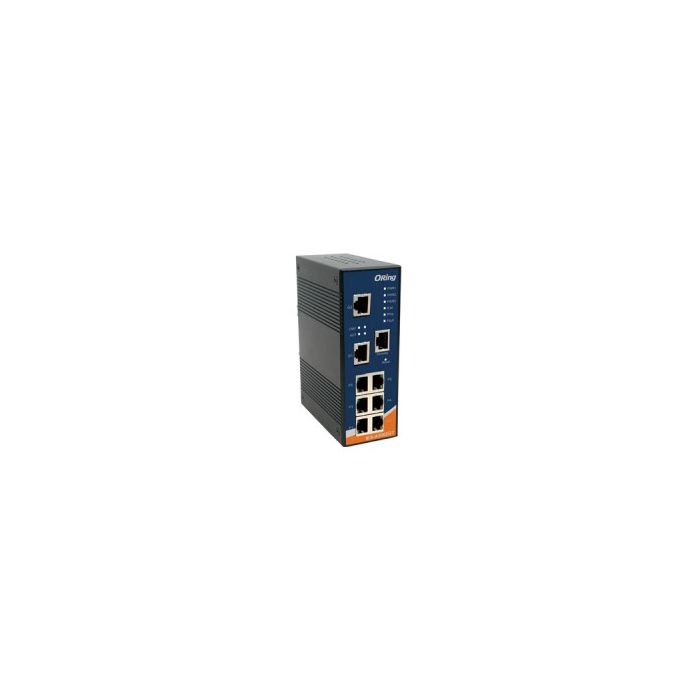

IES-A3062GT - 8 port managed switch
C1D2 and ATEX compliant for harsh industrial environments application
World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain allow multiple redundant network rings
*note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
STP/RSTP:2004/MSTP supported
Support IPV6 new internet protocol version
Provided HTTPS/SSH protocol to enhance network security
Support TACACS+ and 802.1x User Authentication for security
*NOTE: This function is available by request only
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
6
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
2
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.3x for Flow control IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004) IEEE 802.1w for RSTP(Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication
MAC Table
8192 MAC addresses
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching latency : 7 μs Switching bandwidth : 5.2Gbps Max. Number of Available VLANs : 4096 IGMP multicast groups : 1024 Port rate limiting : User Define
Security Feature
Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1q ) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space Radius centralized password management SNMPV1/V2c/V3 encrypted authentication and access security Https / SSH enhance network security
Software Features
STP/RSTP:2004/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network Support PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP
