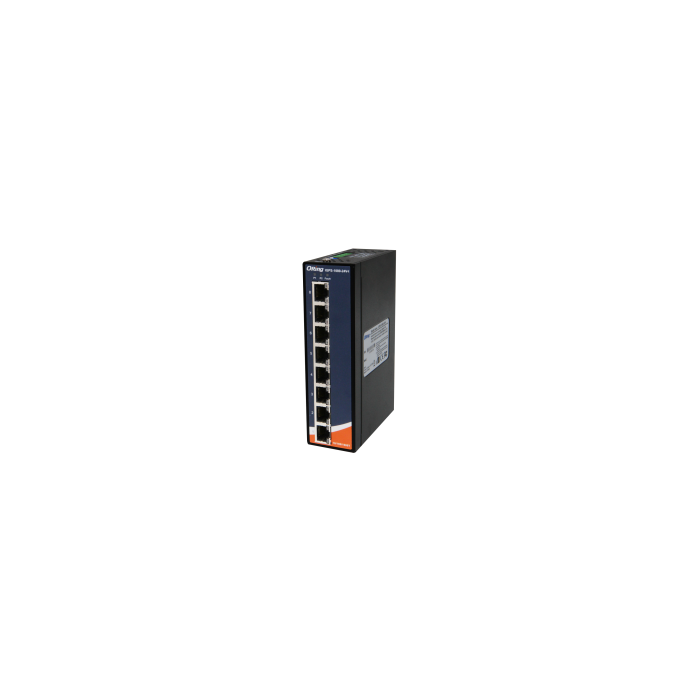

IGPS-1080-24V - 8-port unmanaged PoE Ethernet switch

Industrial 8-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E., 24VDC power inputs, Isolation version

In stock

SKU
IGPS-1080-24V-xx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGPS-1080-24V - 8-port unmanaged PoE Ethernet switch

  • IGPS-1080-24V-I provide 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
  • Supports Isolation protection
  • Supports jumbo frame up to 9.6KBytes
  • Supports dual 24VDC power inputs for power redundancy
  • Supports auto-negotiation and auto-MDI/MDI-X
  • Supports store and forward transmission
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

More Information

Specifications
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 With P.S.E. 8
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table 4K MAC addresses
Processing Store-and-Forward
Jumbo Frame Up to 9.6KBytes
LED Indicators
Power Indicator Green : Power LED x 2
Fault Indicator Amber : Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) RJ45 port and PoE indicator Green for port Link/Act.
Green for PoE power injected.
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
DIP-Switch

DIP-Switch 1

 Power-2 failed warning : (ON) enable, (OFF) disable

DIP-Switch 2

 Power-1 failed warning : (ON) enable, (OFF) disable
Power

Redundant Input power

Dual DC inputs 24~36VDC on 6-pin terminal block.

Power consumption (Typ.)

13 Watts

PoE Power Budget

120 Watts

Overload current protection

Present

Reverse polarity protection

Present
Physical Characteristic

Enclosure

 IP-30

Dimension (W x D x H)

41(W) x 94.9(D) x 144.3(H) mm

Weight (g)

686 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55032) class A, E-MARK
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Warranty 5 years
Description
  • IGPS-1080-24V-I provide 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
  • Supports Isolation protection
  • Supports jumbo frame up to 9.6KBytes
  • Supports dual 24VDC power inputs for power redundancy
  • Supports auto-negotiation and auto-MDI/MDI-X
  • Supports store and forward transmission
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
pdf
Datasheet
