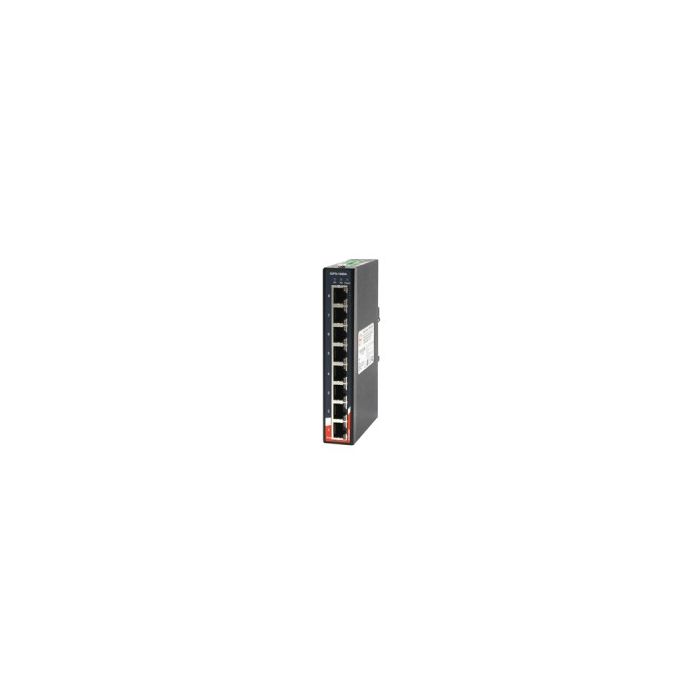

IGPS-1080 - 8 port unmanaged PoE Ethernet switch

Industrial 6-port unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket, 24VDC power input

In stock

SKU
IGPS-1080-xx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGPS-1080 - 8 port unmanaged PoE Ethernet switch

  • IGPS-1042GP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Supports P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
  • Advanced PoE power boost technology to support dual 24VDC power inputs
  • SFP port supports 100Base-FX and 1000Base-X speed
  • Supports auto-negotiation and auto-MDI/MDI-X
  • Supports store and forward transmission
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
  • Supports Jumbo Frame up to 10K Bytes

More Information

Specifications
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 With P.S.E. 8
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Switching Bandwidth 16Gbps
MAC Table 4K MAC addresses
Processing Store-and-Forward
Jumbo Frame 9KBytes
LED Indicators
Power Indicator  Green : Power LED x 2
Fault Indicator  Amber : Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) RJ45 port indicator and PoE indicator Green for port Link/Act.
Green for PoE power injected.
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
DIP-Switch
DIP-Switch 1 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-2 failed warning : (ON) enable, (OFF) disable
Power
Redundant Input power Dual DC inputs. 50~57VDC on 6-pin terminal block.
Power consumption (Typ.) 8 Watts (power device not included)
PoE Power budget 180Watts
Overload current protection Present
Reverse polarity protection Present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H)

26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch)

Weight (g)

  442g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMC CE EMC (EN55024,EN 55032), FCC Part 15 B
EMI EN55032, CISPR 32, EN61000-3-2, EN61000-3-3, FCC Part 15 B class A
EMS

EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT),

IEC/EN61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP)
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) 665,276
Warranty 5 years
Description
  • IGPS-1042GP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Supports P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
  • Advanced PoE power boost technology to support dual 24VDC power inputs
  • SFP port supports 100Base-FX and 1000Base-X speed
  • Supports auto-negotiation and auto-MDI/MDI-X
  • Supports store and forward transmission
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
  • Supports Jumbo Frame up to 10K Bytes
pdf
Datasheet
