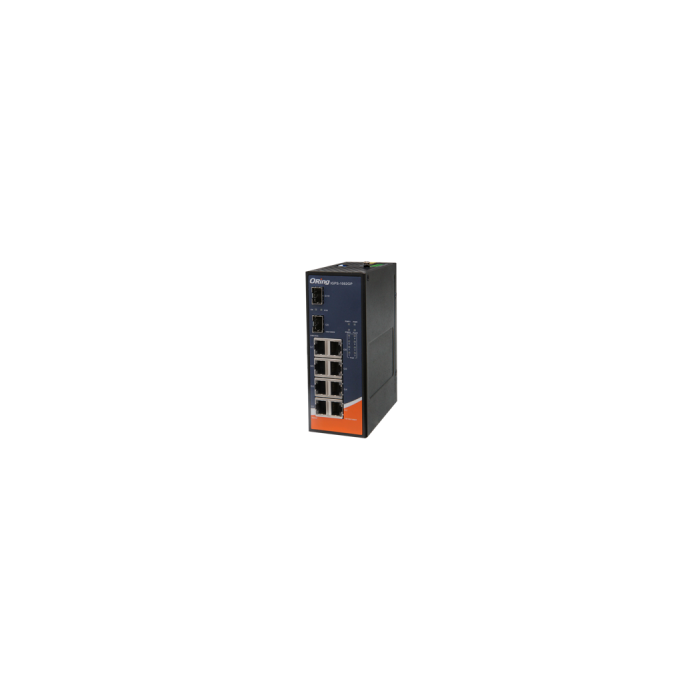

IGPS-1082GP - 10-port unmanaged PoE Ethernet switch

Industrial 10-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket

In stock

SKU
IGPS-1082GP-xx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGPS-1082GP - 10-port unmanaged PoE Ethernet switch

  • Support 8 ports IEEE 802.3at compliant PoE and total power budget is 120W with maximum 30W per port of 24V model
  • Total power budget is 180Watts with maximum 30Watts per port of IGPS-1082GP model
  • Support up to 9.6K Bytes Jumbo Frame
  • Support up to 4Mbit Packet buffer
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support flow control
  • Provided relay output for power failed warning system
  • Provide DIP-switch to setting SFP speed
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

More Information

Specifications
Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX 8 (P.S.E. with IEEE 802.3at)
100/1000Base-X with SFP port 2
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3af/at PoE specification
MAC Table 8k
Processing Store-and-Forward
Processing Store-and-Forward
Switch Properties Switching latency: less than 7us
Switching bandwidth: 20Gbps
Jumbo frame Up to 9.6K Bytes
Packet buffer 4Mbit
LED Indicators
Power Indicator (PWR) Green : Power LED x 3
Fault Indicator Amber : Indicate power failed even warning
10/100/1000Base-T(X) RJ45 PoE Port Indicator Green for Link/Act indicator
Green for PoE enable indicator.
100/1000Base-X SFP Port Indicator Green for port Link/Act.
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
DIP-Switch
DIP-Switch 1 Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 3 DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps
DIP-Switch 4 DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default)
Power
Redundant Input power Dual DC inputs. 50 ~ 57VDC on 6-pin terminal block. Dual DC inputs. 12 ~ 57VDC on 6-pin terminal block.
Power consumption (Typ.) 11W 11W
PoE Power budget 180W 60W at 12~24VDC, 120W at 24~57VDC
Overload current protection Present
Reverse polarity protection Present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H)

54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.)

Weight (g)

 889g 916g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMC EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3
EMI CISPR 32, EN55032, FCC Part 15B class A
EMS IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000-4-8 (PFMF), IEC 61000-4-11 (DIP)
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) TBD TBD
Warranty 5 years
Description
  • Support 8 ports IEEE 802.3at compliant PoE and total power budget is 120W with maximum 30W per port of 24V model
  • Total power budget is 180Watts with maximum 30Watts per port of IGPS-1082GP model
  • Support up to 9.6K Bytes Jumbo Frame
  • Support up to 4Mbit Packet buffer
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support flow control
  • Provided relay output for power failed warning system
  • Provide DIP-switch to setting SFP speed
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
