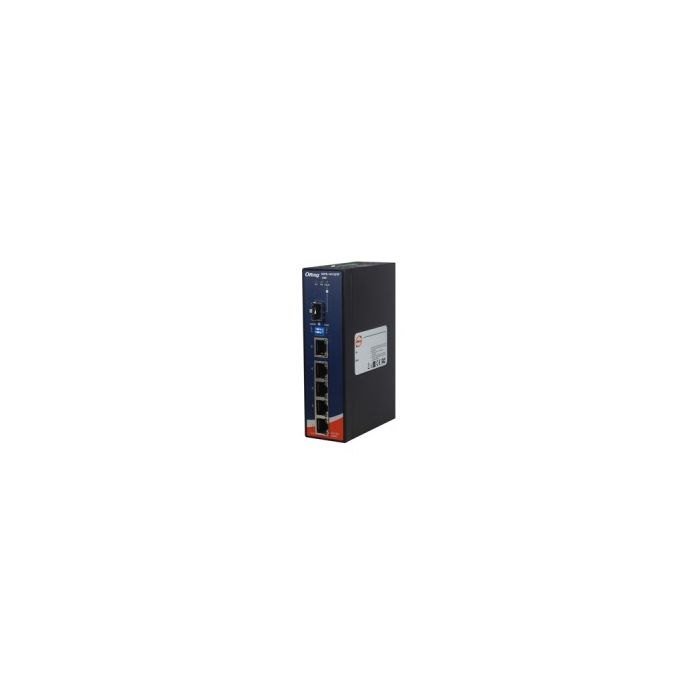

IGPS-1411GTP - 6 port unmanaged PoE Ethernet switch

Industrial 6-port slim type unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 1x10/100/1000Base-T(X) and 1x1000Base-X, SFP socket, 24VDC power inputs

In stock

SKU
IGPS-1411GTP-xx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGPS-1411GTP - 6 port unmanaged PoE Ethernet switch

  • IGPS-1411GTP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
  • Supports Jumbo frame up to 10KBytes
  • SFP port support 100Base-FX and 1000Base-X speed
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support dual wide range 12~57VDC power inputs for power redundancy
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

More Information

Specifications
Physical Ports

10/100/1000Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIX

 4

10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX

 1

100/1000Base-X SFP port

 1
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table 1K MAC addressessses
Processing Store-and-Forward
LED Indicators

Power indicator

Green : Power LED x 2
Fault Indicator

Amber : Indicate PWR1 or PWR2 failure

10/100/1000Base-T(X) RJ45 port indicator and PoE indicator (P1 ~ P4)

Green for port Link/Act.
Green for PoE power injected

10/100/1000Base-T(X) RJ45 port indicator (P5)

Green for port Link/Act.
Amber for 100Mbps indicator

100/1000Base-X SFP port indicator (P6)

Green for port Link/Act.

SFP Speed DIP-Switch



DIP-Switch 1/2

DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps
DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps

Relay Output DIP-Switch



DIP-Switch 1

Power-1 failed warning : (ON) enable, (OFF) disable

DIP-Switch 2

Power-2 failed warning : (ON) enable, (OFF) disable
Fault contact
Relay

Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power

Dual DC inputs. 12~57VDC on 6-pin terminal block.
Power consumption (Typ.)

7 Watts (power device not included)
PoE Power Budget

60 Watts at 12~24VDC, 120 Watts at 24~57VDC

Overload current protection

 Present

Reverse polarity protection

Present

Physical Characteristics


Enclosure IP-30
Dimensions (W x D x H)

41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68 inches)
Weight (g)

651 g
Environmental
Storage Temperature

-40 to 85°C (-40 to 185°F)
Operating Temperature

-40 to 75°C (-40 to 167°F)
Operating Humidity

5% to 95% Non-condensing
Regulatory Approvals
EMI

FCC Part 15, CISPR (EN55032) class A, EM55024
EMS

IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock

IEC60068-2-27
Free Fall

IEC60068-2-32
Vibration

IEC60068-2-6
Safety

EN60950-1
Warranty 5 years


Description
  • IGPS-1411GTP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
  • Supports Jumbo frame up to 10KBytes
  • SFP port support 100Base-FX and 1000Base-X speed
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support dual wide range 12~57VDC power inputs for power redundancy
  • Supports flow control
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
pdf
Datasheet
