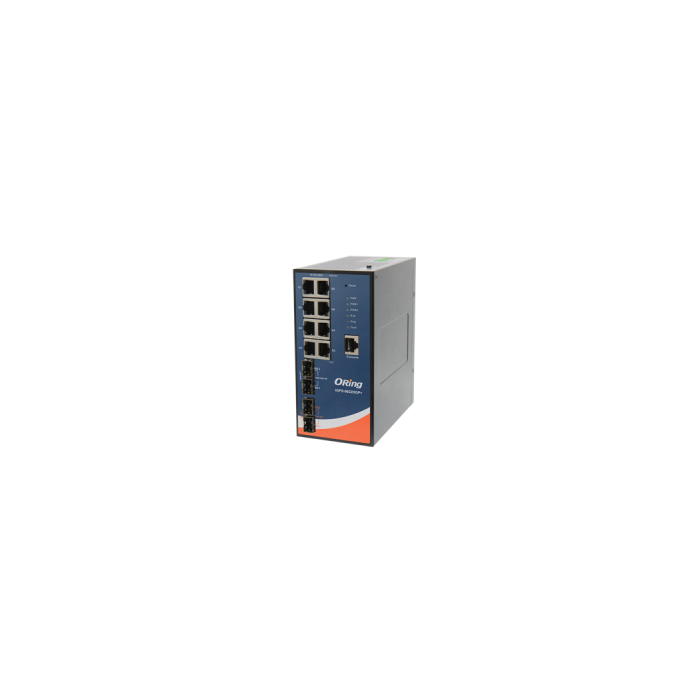

| Physical Ports | |
| 10/100/1000Base-T(X) with P.S.E. ports in RJ45 Auto MDI/MDIX | 8 |
| 100/1G/2.5GBase-X with SFP port | 2 |
| 1G/10GBase-X with SFP port | 2 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1d for STP (Spanning Tree Protocol)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3af/at PoE specification |
| MAC Table | 32k |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Packet Buffer | 32Mbits |
| Switch Properties | Switching latency: 7 us
Switching bandwidth: 66Gbps
Throughput (packet per second) : 49.1Mpps@64Bytes packet
Max. Number of Available VLANs: 4096
VLAN ID Range : VID 0 to 4095
IGMP multicast groups: 64 for each VLAN
Port rate limiting: User Define |
| Jumbo frame | Up to 10K Bytes |
| Security Featues | Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
RADIUS/TACACS+ centralized password management
SNMPv3 encrypted authentication and access security
HTTPS / SSH / SSL enhance network security
DOS/DDOS auto prevention
IP Source Guard |
| Software Features | Redundant Ring (O-Ring) with recovery time less than 30ms
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
NTP server/client
UPnP |
| QoS | TOS/Diffserv supported
CoS
Application based QoS
IP based bandwidth management |
| Network Redundancy | O-Ring
O-Chain
*note MRP
STP/RSTP/MSTP (IEEE 802.1 d/w/s) |
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 |
| LED Indicators | |
| Power Indicator (PWR) | Green : Power LED x 3 |
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 Port Indicator (Upper) | Dual color LED: Green for 1000Mbps Link/Act indicator. Amber for 100Mbps Link/Act indicator, OFF for 10Mbps Link/Act |
| PoE Indicator RJ45 Port (Lower) | Amber : PoE enable |
| 1G/2.5GBase-X SFP Port Indicator | Green LED for Link/Act |
| 1G/10Gbase-X SFP Port Indicator | Green LED for Link/Act |
| Fault Contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Reset Function | |
| Reset Button | < 5 sec: System reboot, > 5 sec: Factory default |
| Power | |
| Redundant Input Power | Dual DC inputs 50~57VDC on 6-pin terminal block |
| Power consumption (Typ.) | 19 Watts |
| Total PoE power budget | 240W max, 30W per port |
| Overload current protection | Present |
| Reverse Polarity Protection | Present |
| Physical Characteristics | |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 74.3 (W) x 125 (D) x 153.6 (H) mm (2.93 x 4.92 x 6.05 inches) |
| Weight (g) | 1078 g |
| Environmental | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167oF) |
| Operating Humidity | 5% to 95% Non-condensing |
| Regulatory Approvals | |
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| MTBF | 497728 hrs |
| Warranty | 5 years |
