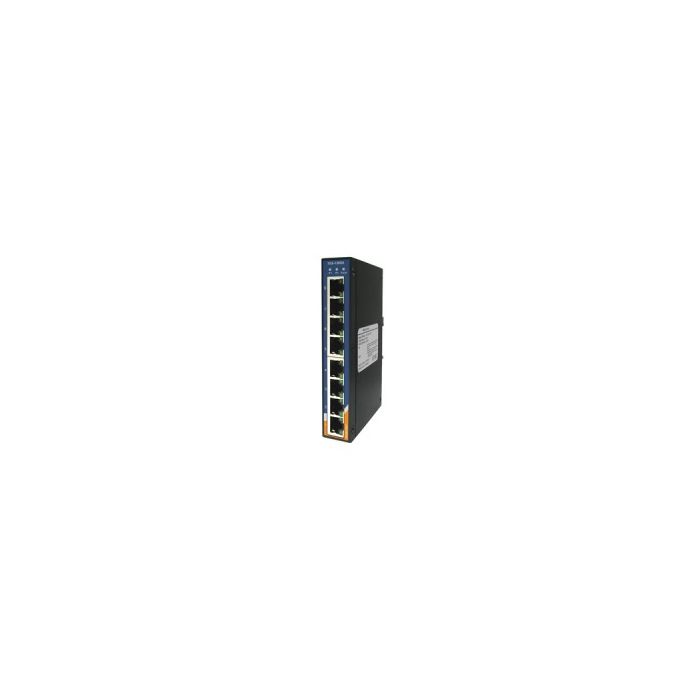

IGS-1080A - 8 port unmanaged Gigabit Ethernet switch
IGS-1080A - 8 port unmanaged Gigabit Ethernet switch
Industrial 8-port slim type unmanaged Gigabit Ethernet switch with 8x10/100/1000Base-T(X)
-
SKU
-
IGS-1080A
Have a Question about this product?
Description /
IGS-1080A - 8 port unmanaged Gigabit Ethernet switch
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports Jumbo Frame up to 9K Bytes
- Relay output for carrying capacity of 1A at 24 VDC
- Supports store-and-forward transmission
- Supports flow control
- Hardware DIP switch for enabling/disabling the warning function
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
More Information
| Specifications |
| Physical Ports | | | 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 | | Technology | | | Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control | | MAC Table | 2048 MAC addresses | | Processing | Store-and-Forward | | LED Indicators | | | Power Indicator | Green : Power LED x 2 | | Fault Indicator | Amber : Indicates PWR1 or PWR2 failure | | 10/100/1000Base-T(X) RJ45 Port Indicator | Green for port Link / Act
Amber for 100Mbps indicator | | DIP Switch | | | DIP-Switch 1 | Power-1 failed warning : (ON) enable, (OFF) disable | | DIP-Switch 2 | Power-2 failed warning : (ON) enable, (OFF) disable | | Fault Contact | | | Relay | Relay output to carry capacity of 1A at 24VDC | | Power | | | Redundant Input Power | Dual DC inputs. 12~48 VDC on 6-pin terminal block | | Power Consumption (Typ.) | 7 Watts | | Overload Current Protection | Present | | Reverse Polarity Protection | Present | | Physical Characteristics | | | Enclosure | IP-30 | | Dimensions (W x D x H) | 26.1(W) x 94.9(D) x 144.3(H) mm ( 1.03x3.74x5.68 inch.) | | Weight (g) | 375g | | Environmental | | | Storage Temperature | -40 to 85°C (-40 to 185°F) | | Operating Temperature | -40 to 70°C (-40 to 158°F) | | Operating Humidity | 5% to 95% Non-condensing | | Regulatory Approvals | | | EMI | FCC Part 15, CISPR (EN55022) class A | | EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 | | Shock | IEC60068-2-27 | | Free Fall | IEC60068-2-32 | | Vibration | IEC60068-2-6 | | Safety | EN60950-1 | | Warranty | 5 years | |
| Description |
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports Jumbo Frame up to 9K Bytes
- Relay output for carrying capacity of 1A at 24 VDC
- Supports store-and-forward transmission
- Supports flow control
- Hardware DIP switch for enabling/disabling the warning function
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
|
