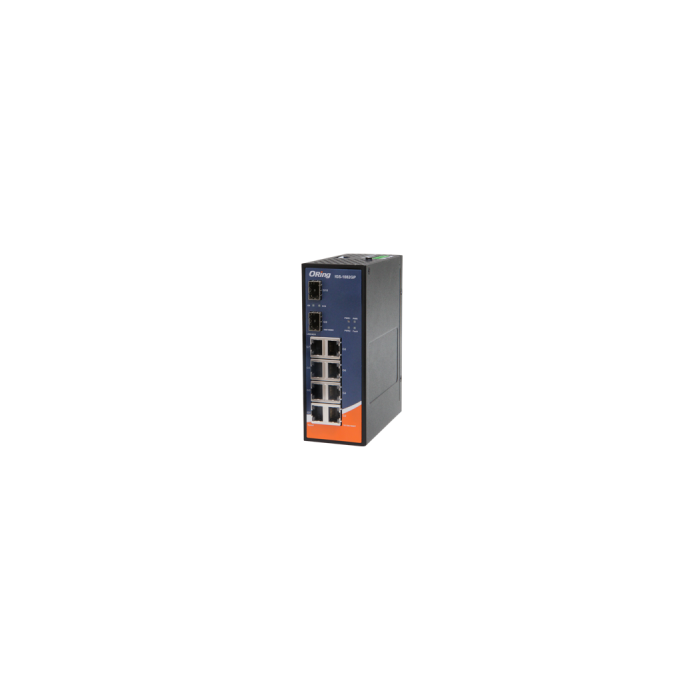

IGS-1082GP 10 port Unmanaged GbE Switch

Oring

Industrial 10-port unmanaged Gigabit Ethernet switch with 8x10/100/1000Base-T(X) and 2x100/1000Base-X, SFP socket

Key Features:

  • 8 ports IEEE 802.3at compliant PoE
  • Total power budget is 180Watts
  • Up to 9.6K Bytes Jumbo Frame
  • Support up to 4Mbit Packet buffer
  • Support store and forward transmission
  • Support flow control
  • Provided relay output for power failed warning system
  • Provide DIP switch for setting SFP speed
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled



In stock

SKU
IGS-1082GP
$745.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGS-1082GP 10 port Unmanaged GbE Switch

  • Support 9.6K Bytes Jumbo Frame
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support flow control
  • Support up to 9.6K Bytes Jumbo Frame
  • Support up to 4Mbit Packet buffer
  • Support wide range power input 12~48VDC
  • Provide DIP-switch to setting SFP speed
  • Provided relay output for power failed warning system
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

More Information

brand Oring
Specifications
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
100/1000Base-X with SFP port 2
Technology
Ethernet Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
MAC Table 8k
Processing Store-and-Forward
Switch Properties Switching latency: 7 us
Switching bandwidth: 20Gbps
Jumbo frame Up to 9.6K Bytes
Packet buffer 4Mbit
LED Indicators
Power Indicator (PWR) Green : Power LED x 3
Fault Indicator Amber : Indicate power failed even warning
10/100/1000Base-T(X) RJ45 Port Indicato

Green for port Link/Act.
Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps
100/1000Base-X SFP Port Indicator Green for port Link/Act.
DIP Switch
DIP-Switch 1 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 3 DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps
DIP-Switch 4 DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default)
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 6-pin terminal block
Power Consumption (Typ.) 10 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.)
Weight (g) 837g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMC EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3
EMI CISPR 32, EN55032, FCC Part 15B class A
EMS IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000-4-8 (PFMF), IEC 61000-4-11 (DIP)
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1 compliant
MTBF TBD
Warranty 5 years


Description
  • Support 9.6K Bytes Jumbo Frame
  • Support auto-negotiation and auto-MDI/MDI-X
  • Support store and forward transmission
  • Support flow control
  • Support up to 9.6K Bytes Jumbo Frame
  • Support up to 4Mbit Packet buffer
  • Support wide range power input 12~48VDC
  • Provide DIP-switch to setting SFP speed
  • Provided relay output for power failed warning system
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
