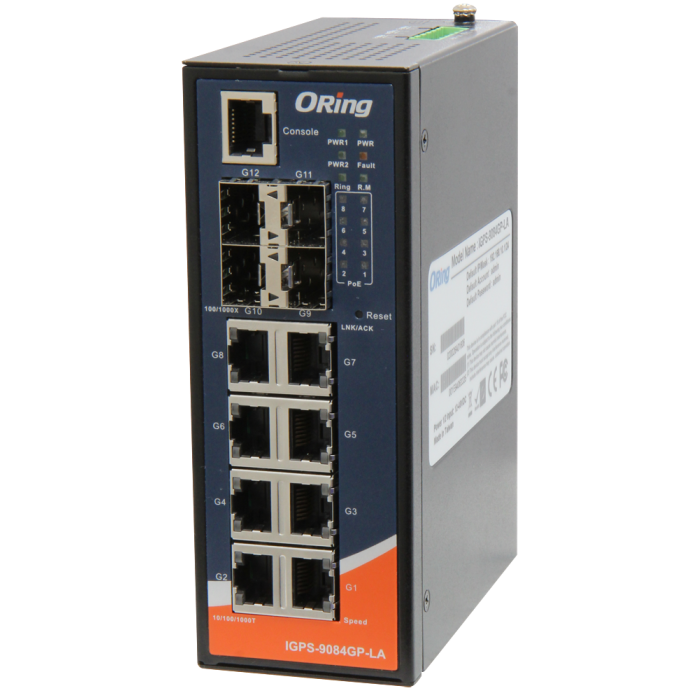

IGS-9084GP-LA 12 Port Managed Gigabit Ethernet Switch

Oring

8GE + 4G SFP Cyber-hardened Managed Ethernet Switch IEC 62443-4-2 Certified

Key Features:

  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
  • Support Modbus TCP and Ethernet/IP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
  • + see more below!

In stock

SKU
IGS-9084GP-LA
$965.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGS-9084GP-LA 12 Port Managed Gigabit Ethernet Switch

IGS-9084GP-LA is a managed Ethernet switch with 8x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. Developed according to IEC 62443-4-1 and certified compliant with the IEC 62443-4-2 industrial cybersecurity standards. These standards cover product security and secure development life-cycle requirements, enabling our customers to meet secure industrial network design compliance requirements. With complete support for Ethernet Redundancy protocols such as O-Ring (recovery time < 30ms over 250 units of connection), MSTP (RSTP/STP compatible), G.8032 ERPS, and MRP, it can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The switch also supports a wide operating temperature range from -40°C to 75°C. In addition to a web-based interface, Telnet, and console (CLI) configuration, IGS-9084GP-LA can be centrally managed conveniently via Open-Vision.

Key Features include:

  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
  • Support Modbus TCP and Ethernet/IP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding
  • Support DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+ and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Syslog/SNMP Trap notification for warning of unexpected event
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Robust EMS design, provide 8K ESD and 4KV Surge protection
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

More Information

brand Oring
Specifications

Category

Specification

Physical Ports

10/100/1000Base-T(X) Ports (RJ45 Auto MDI/MDIX): 8

100/1000Base-X SFP Ports: 4

Technology

Ethernet Standards:

- IEEE 802.3 (10Base-T)

- IEEE 802.3u (100Base-TX, 100Base-FX)

- IEEE 802.3ab (1000Base-T)

- IEEE 802.3z (1000Base-X)

- IEEE 802.3x (Flow Control)

- IEEE 802.3ad (LACP)

- IEEE 802.1p (COS)

- IEEE 802.1Q (VLAN Tagging)

- IEEE 802.1Q-2014 MSTP (STP/RSTP Compatible)

- IEEE 802.1x (Authentication)

- IEEE 802.1AB (LLDP)

MAC Table

8k

Priority Queues

8

Processing

Store-and-Forward

Shared Data Buffer

4Mbit

Switch Properties

Switching Latency: 7 µs

Switching Bandwidth: 12 Gbps

Throughput: 17.856 Mpps @ 64 Bytes Packet

Max VLANs: 4095

VLAN ID Range: VID 1 to 4094

IGMP Multicast Groups: 256 for Each VLAN

Port Rate Limiting: User Define

Jumbo Frame

Up to 9.6K Bytes

Security Features

Device Binding Security Feature

Enable/Disable Ports, MAC Based Port Security

Port-Based Network Access Control (802.1x)

VLAN (802.1Q)

RADIUS Centralized Password Management

SNMPv3 Encrypted Authentication and Access Security

HTTPS/SSH Enhanced Network Security

Software Features

MSTP (RSTP/STP Compatible)

Redundant Ring (O-Ring) with Recovery Time < 30ms over 250 Units

TOS/DiffServ Supported

Quality of Service (802.1p)

VLAN (802.1Q) with VLAN Tagging

IGMP Snooping

IP-Based Bandwidth Management

Application-Based QoS Management

DoS/DDoS Auto Prevention

Port Configuration, Status, Statistics, Monitoring, Security

DHCP Server/Client/Relay

SMTP Client

Modbus TCP

NTP Server

Network Redundancy

O-Ring, O-Chain, ERPS (Ethernet Ring Protection Switching), MRP*, MSTP (RSTP/STP Compatible)

RS-232 Serial Console Port

RS-232 in RJ45 Connector with Console Cable. 115200bps, 8, N, 1

LED Indicators

Power Indicator (PWR): Green, Power LED x 3

Ring Master Indicator (R.M.): Green, System Operating in O-Ring Master Mode

O-Ring Indicator (Ring): Green (Operating), Blinking Green (Ring Broken)

Fault Indicator (Fault): Amber (Unexpected Event)

10/100/1000Base-T(X) RJ45 Port Indicator

Upper: Link/Act Indicator (Green), Lower: Speed Indicator (Green: 1000Mbps / Amber: 100Mbps / Off: 10Mbps)

100/1000Base-X SFP Port Indicator

Green for Port Link/Act

Fault Contact

Relay Output to Carry Capacity of 1A at 24VDC

Reset Function

Reset Button < 5 sec: System Reboot, > 5 sec: Factory Default

Power

Redundant Input Power: Dual DC Inputs, 12~48VDC on 6-Pin Terminal Block

Power Consumption (Typ.): 13 Watts

Overload Current Protection: Present

Reverse Polarity Protection: Present

Physical Characteristic

Enclosure: IP-30 Metal

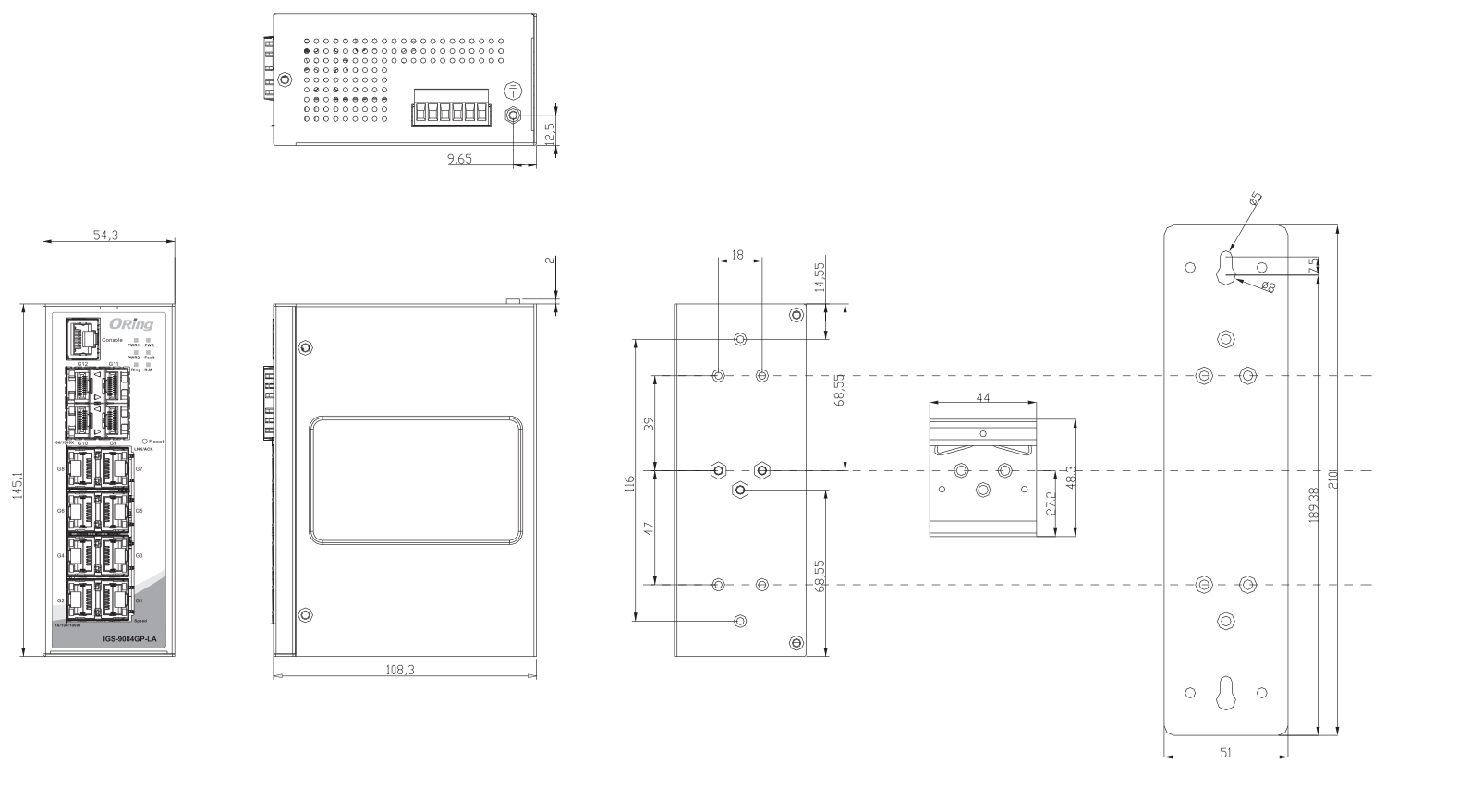

Dimensions (W x D x H): 54.3 x 120 x 145.1 mm (2.13 x 4.72 x 5.71 inches)

Weight: 779g

Environmental

Storage Temperature: -40 to 85°C (-40 to 185°F)

Operating Temperature: -40 to 75°C (-40 to 167°F)

Operating Humidity: 5% to 95% Non-condensing

Regulatory Approvals

Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2

EMC: CE EMC (EN 55035, EN 55032), FCC Part 15B

Other

Design for Rugged Excellence

* All specifications are subject to change without notice.



Ordering Information

IGS-9084GP-LA

Industrial Slim 12-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X, SFP socket, Generic version
IGS-9084GP

Industrial 12-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
Description

IGS-9084GP-LA is a managed Ethernet switch with 8x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. Developed according to IEC 62443-4-1 and certified compliant with the IEC 62443-4-2 industrial cybersecurity standards. These standards cover product security and secure development life-cycle requirements, enabling our customers to meet secure industrial network design compliance requirements. With complete support for Ethernet Redundancy protocols such as O-Ring (recovery time < 30ms over 250 units of connection), MSTP (RSTP/STP compatible), G.8032 ERPS, and MRP, it can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The switch also supports a wide operating temperature range from -40°C to 75°C. In addition to a web-based interface, Telnet, and console (CLI) configuration, IGS-9084GP-LA can be centrally managed conveniently via Open-Vision.

Key Features include:

  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
  • Support Modbus TCP and Ethernet/IP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding
  • Support DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+ and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Syslog/SNMP Trap notification for warning of unexpected event
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Robust EMS design, provide 8K ESD and 4KV Surge protection
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled
