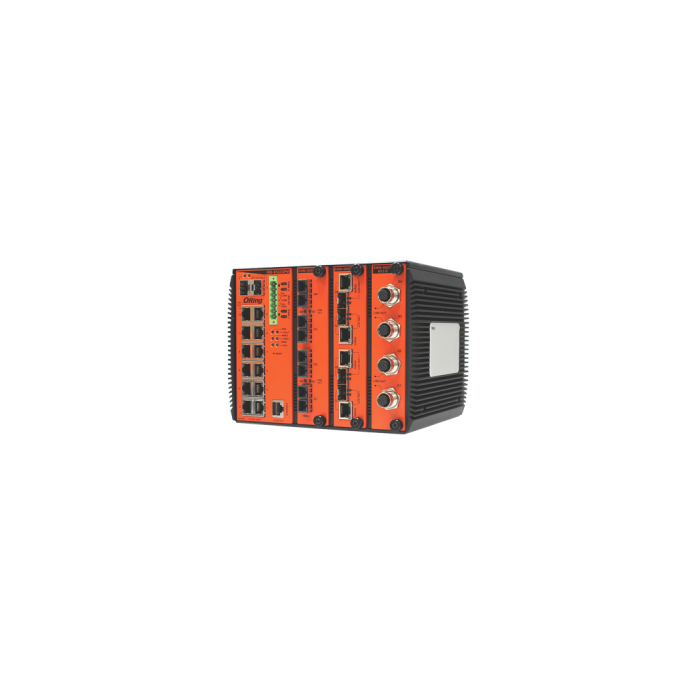

IGS-9122GPM - 15 port industrial switch

EN50155 modular managed Gigabit Ethernet switch with 12x10/100/1000Base-T(X) and 100/1000Base-X, SFP socket, 3 module extender slots

In stock

SKU
IGS-9122GPM

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IGS-9122GPM - 15 port industrial switch

  • Modular designed and Hot-swappable make network planning easier
  • Support O-Ring (recovery time < 30ms over 250 units of Gigabit Ethernet and <10ms over 250 units of fast Ethernet) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock Synchronization
  • Support IPv6 new internet protocol version
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Support NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v1/v2/v3 (IGMP snooping support) and GMRP for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support port mirror function to monitor port data
  • Support ACL and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Support dual power inputs for power redundancy
  • Din-Rail enabled and fan-less design
  • Modular designed and Hot-swappable make network planning easier
  • Support O-Ring(recovery time < 30ms over 250 units of Gigabit Ethernet and <10ms over 250 units of fast Ethernet) andMSTP (RSTP/STP compatible) forEthernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Supportstandard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock Synchronization
  • Support IPv6 new internet protocol version
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Support NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v1/v2/v3 (IGMP snooping support)and GMRP for filtering multicast traffic
  • Support SNMPv1/v2c/v3 & RMON & 802.1QVLAN Network Management
  • Support port mirror function to monitor port data
  • Support ACL and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Support dual power inputs for power redundancy
  • Din-Rail enabled and fan-less design

*NOTE: This function is available by request only

More Information

Specifications
Physical Ports

10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX

 12
100/1000Base-X SFP Ports 2
Module Slot Number 3 (support 4x1G combo / 4x1G Fiber / 4x100Mbps Fiber module)
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3ae for 10Gigabit Ethernet
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8k
Priority Queues 8
Processing Store-and-Forward
Switch Properties

Switching latency: 7 us
Switching bandwidth: 52Gbps
Max. Number of Available VLANs: 4095
VLAN ID Range: 1 to 4094
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
Jumbo Frame Up to 9.6K Bytes
Security Features

Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
MAC-based authentication
MAC address limit
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Web and CLI authentication and authorization
IP source guard
Software Features

IEEE 1588v2 clock synchronization
IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static)
Multiple Registration Protocol (MRP)
MSTP (RSTP/STP compatible)
Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP v2/v3 Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client
DHCP Relay
Modbus TCP
DNS client proxy
SMTP Client
NTP server
Network Redundancy O-Ring
O-Chain
*note MRP
Fast Recovery
MSTP (RSTP/STP compatible)
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable.  115200bps, 8, N, 1 (support DBU-01 backup unit)
LED Indicators
System Ready Indicator (PWR) Green: Indicates that the system ready.  The LED is blinking when the system is upgrading firmware.
Power Indicator (PWR1 / PWR2) Green: Power LED x 2
Ring Master Indicator (R.M.) Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)

Green: Indicates that the system operating in O-Ring mode
Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault) Amber: Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 Port Indicator

Green for Link/Act indicator.
Dual color LED for speed indicator : Green for 1000Mbps, Amber for 100Mbps, Off-light for 10Mbps
100/1000Base-X SFP Port Indicator Green for Link/Act indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant power input modular Dual 12~48VDC power inputs at terminal block
Power consumption (Typ.) TBD
Overload Current Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 184 (W) x 155 (D) x 150 (H) mm (7.24x6.1x5.9 inch)
Weight (g) TBD
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50121-4, EN50155(pending)
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
Description
  • Modular designed and Hot-swappable make network planning easier
  • Support O-Ring (recovery time < 30ms over 250 units of Gigabit Ethernet and <10ms over 250 units of fast Ethernet) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock Synchronization
  • Support IPv6 new internet protocol version
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Support NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v1/v2/v3 (IGMP snooping support) and GMRP for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support port mirror function to monitor port data
  • Support ACL and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Support dual power inputs for power redundancy
  • Din-Rail enabled and fan-less design
  • Modular designed and Hot-swappable make network planning easier
  • Support O-Ring(recovery time < 30ms over 250 units of Gigabit Ethernet and <10ms over 250 units of fast Ethernet) andMSTP (RSTP/STP compatible) forEthernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Supportstandard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IEEE 1588v2 clock Synchronization
  • Support IPv6 new internet protocol version
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Support NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v1/v2/v3 (IGMP snooping support)and GMRP for filtering multicast traffic
  • Support SNMPv1/v2c/v3 & RMON & 802.1QVLAN Network Management
  • Support port mirror function to monitor port data
  • Support ACL and 802.1x User Authentication for security
  • Support 9.6K Bytes Jumbo Frame
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Support LLDP Protocol
  • Support dual power inputs for power redundancy
  • Din-Rail enabled and fan-less design

*NOTE: This function is available by request only
