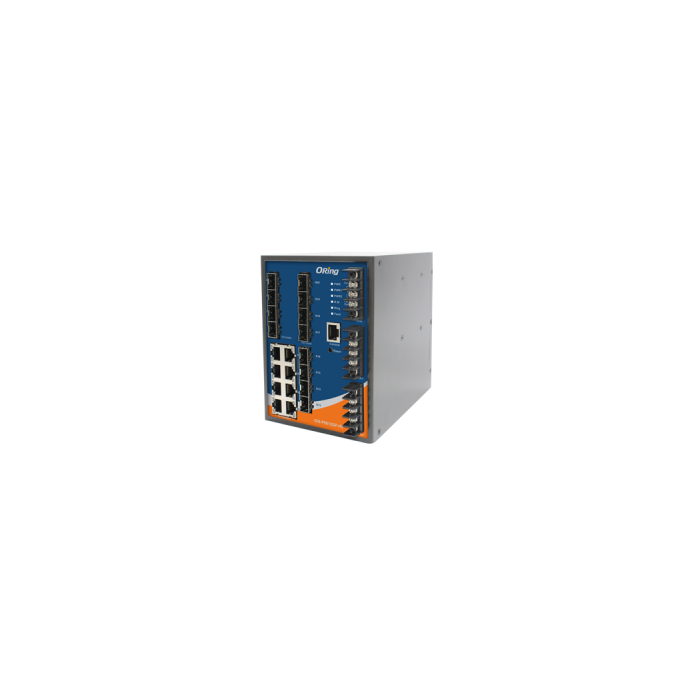

Industrial IEC 61850-3 20-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X, SFP socket
In stock
SKU
IGS-P9812GP-xx
Have a Question about this product?
Description /
IGS-P9812GP Series - 20 port managed switch
Designed for power substation / Railway application and fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Leading EN50155-compliant Ethernet switch for rolling stock application
Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
Open-Ring support the other vendor's ring technology in open architecture
O-Chain allow multiple redundant network rings
*note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
Support IEEE 1588v2 clock Synchronization
Support IPV6 new internet protocol version
Support ModbusTCP protocol
Support IEEE 802.3azEnergy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client & NTP server
Support IP-based bandwidth management
Support application-based QoS management
Supports backup unit device DBU-01 to quickly configuration backup/restore
*NOTE: This function is available by request only
More Information
Specifications
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
8
100/1000Base-X SFP Port
12
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table
8K
Priority Queues
4
Processing
Store-and-Forward
Switch Properties
Switching latency: 7 us Switching bandwidth: 40Gbps Max. Number of Available VLANs: 4095 VLAN ID Range: VID 1 to 4094 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define Https / SSH enhance network security
Jumbo frame
Up to 9.6K Bytes
Security Featues
Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security
Software Features
STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping NTP Server SNMP v1/v2c/v3, MIB, RMON IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP NTP server
Network Redundancy
O-Ring Open-Ring O-Chain *note MRP Fast Recovery MSTP (RSTP/STP compatible)
RS-232 Serial Console Port
RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator
Green : Power LED x 3
Ring Master Indicator (R.M.)
Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)
Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)
Amber : Indicates unexpected event occurred
10/100/1000Base-T(X) RJ45 port Indicator
Green for Link/Act. Dual color LED for speed indicator: Green for 1000Mbps, Amber for 100Mbps, Off-light for 10Mbps
100/1000Base-X SFP port Indicator
Green for port Link/Act.
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual DC inputs. 12~48 VDC on 6-pin terminal block
Dual power inputs. 85~264VAC / 88~373VDC on 6-pin terminal block
Power Consumption (Typ.)
22 Watts
24 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
115 (W) x 159 (D) x 154 (H)mm (4.53 x 6.26 x 6.06 inch)
Weight (g)
1520 g
1870 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 75°C (-40 to 167°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
Power Automation
IEC 61850-3, IEEE 1613
EMI
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
