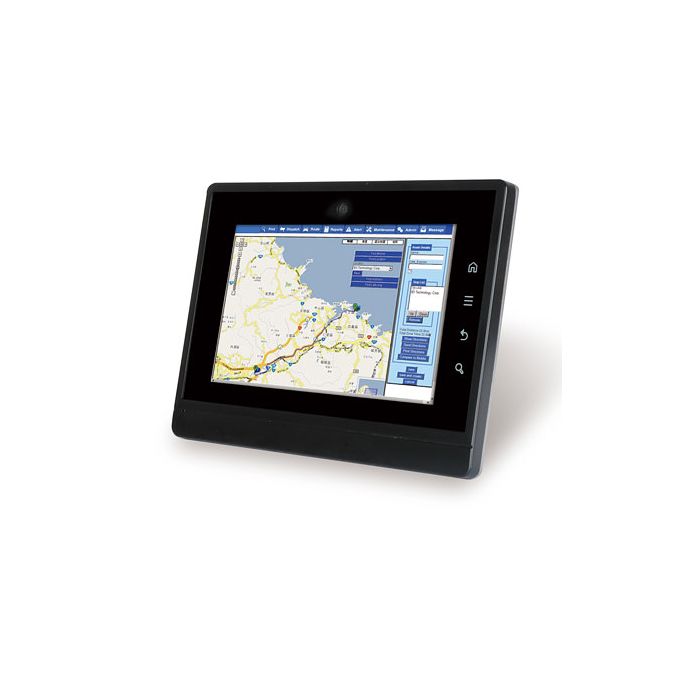

IKARPC-07A-BT

7" 500 cd/m2 1024 x 600 In Vehicle Panel PC with Intel® Atom E3826

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IKARPC-07A-BT

7" 500 cd/m2 1024 x 600 In Vehicle Panel PC with Intel® Atom E3826

· 7” sunlight readable TFT LCD with projected capacitive touchscreen

· Built-in HSUPA/GPRS/GSM, Wi-Fi and Bluetooth

· Built-in GPS receiver

· Supports On-Board Diagnostics: one CAN 2.0B or OBD-II

Specifications

SBC Form Factor	CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W) Chipset: SoC System Memory:On-board 2 GB SDRAM
I/O Interface
I/O Ports	20-pin Connector: 1 x GbE LAN 1 x OBD-II/CAN bus 1 x USB 2.0 24-pin Connector: 1 x Audio line-out (R+L) 1 x Audio line-in 1 x RS-232 4-bit digital I/O (2-bit input, 2-bit output) 1 x USB 2.0 1 x USB3.0 1 x HDMI 2 x SIM slot
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini (reserved for mSATA module), 1 x Full-size PCIe Mini (reserved for 3G module), 1 x Half-size PCIe Mini (reserved for Wi-Fi module)
System
Cooling method / System Fan	Fanless
Indicator&Buttons
Indicators	Power/HDD/Wi-Fi/3G
Color
Color	Black C + Silver
Dimensions
Dimensions	210 x 154 x 28
Weight
Weight	0.9 kg/2.1 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow

Description

7" 500 cd/m2 1024 x 600 In Vehicle Panel PC with Intel® Atom E3826

· 7” sunlight readable TFT LCD with projected capacitive touchscreen

· Built-in HSUPA/GPRS/GSM, Wi-Fi and Bluetooth

· Built-in GPS receiver

· Supports On-Board Diagnostics: one CAN 2.0B or OBD-II
