IKARPC-W10A

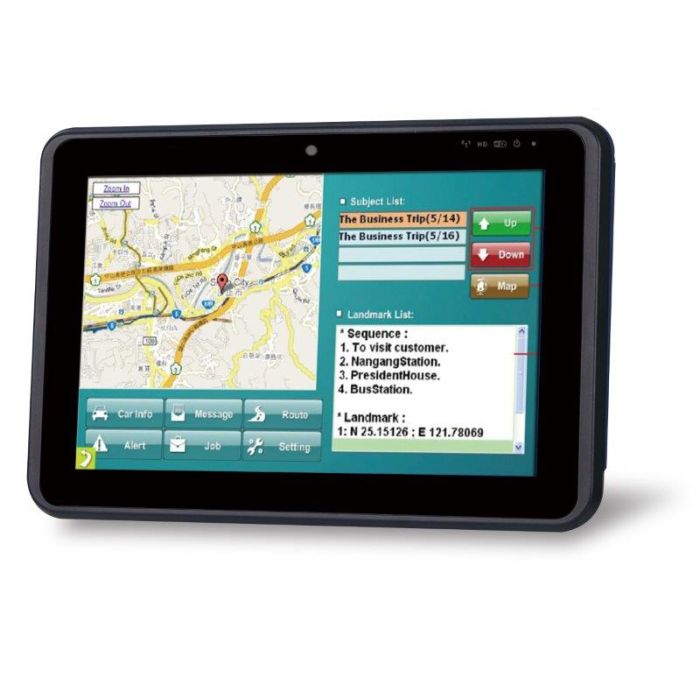

10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IKARPC-W10A

10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz

· 10.1"" TFT LCD with projected capacitive touchscreen

· Intel® Atom™ E3826 1.46 GHz CPU

· Windows® Embedded Standard 7

· Option HSUPA/GPRS/GSM, Wi-Fi and Bluetooth

· Built-in GPS function

· Built-in OBD-II/CAN 2.0

Specifications

SBC Form Factor	CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W) Chipset: SoC System Memory:On-board 2 GB SDRAM
I/O Interface
I/O Ports	1 x USB3.0 1 x USB2.0 1 x GbE LAN 2 x DB-9 RS-232 8-bit digital I/O (4-bit input, 4-bit output) 1 x DB-9 CAN-bus/OBD-II 1 x HDMI 1 x Line out, 1 x Mic in 2 x SIM slot
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini (reserved for 3G module), 1 x Full-size PCIe Mini (reserved for Wi-Fi module)
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators	Power/Wi-Fi/HDD/3.5G
Color
Color	Blue C + Black C
Dimensions
Dimensions	277 x 186 x 27
Weight
Weight	1.3 kg/2.8 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow

Description

10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz

· 10.1"" TFT LCD with projected capacitive touchscreen

· Intel® Atom™ E3826 1.46 GHz CPU

· Windows® Embedded Standard 7

· Option HSUPA/GPRS/GSM, Wi-Fi and Bluetooth

· Built-in GPS function

· Built-in OBD-II/CAN 2.0
