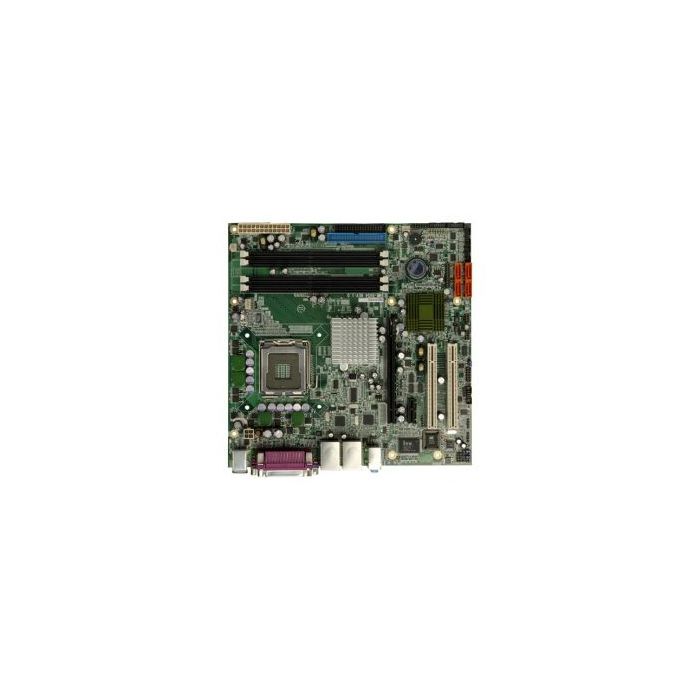

IMB-9454G micro-ATX Motherboard

CPU
LGA 775 Intel® Core 2 Duo, Pentium® 4/D/Celeron® D with 533/800/1066 MHz
FSB
System Chipset
Intel® 945G + ICH7
BIOS
AMI BIOS
System Memory
4 x 240-pin Dual channel DDRII 533/667MHz up to 4GB
Ethernet
Dual PCIe Broadcom BCM5787 GbE chipsets with ASF2.0 support.
I/O Interface
8 x USB 2.0
4 x SATA II
1 x LPT
1 x FDD
5 x RS-232, 1 x RS-232/422/485
1 x 20-pin LPC for TPM modules support
2 x PS/2 for KB/MS
1 x IDE
Expansions
1 x PCIe x 16 (Support PCIe x1/16 PCIe add on cards)
1 x PCIe x 1
2 x PCI
Digital I/O
8-bit digital I/O, 4-bit input/ 4-bit output
IrDA
1x IrDA by pin header
Super I/O
ITE8712
Audio
Realtek ALC655 with AC'97 codec
Display
VGA integrated in Intel® 945G
Watchdog Timer
Software programable 1-255 sec. by super I/O
Power Supply
ATX power supply
Power Consumption
5V@2.09A,12V@8.9A,3.3V@3.6A,5VSB@0.67A
(Pentium® 4 3.2GHZ,DDRII 533 512MB*4)
Temperature
Operation: 0°C ~ 60°C (32 ~ 140° F)
Humidity
Operation: 5% ~ 95% non-condensing
Dimensions
244 mm x 244 mm
Weight
GW: 1200 g; NW: 680 g
