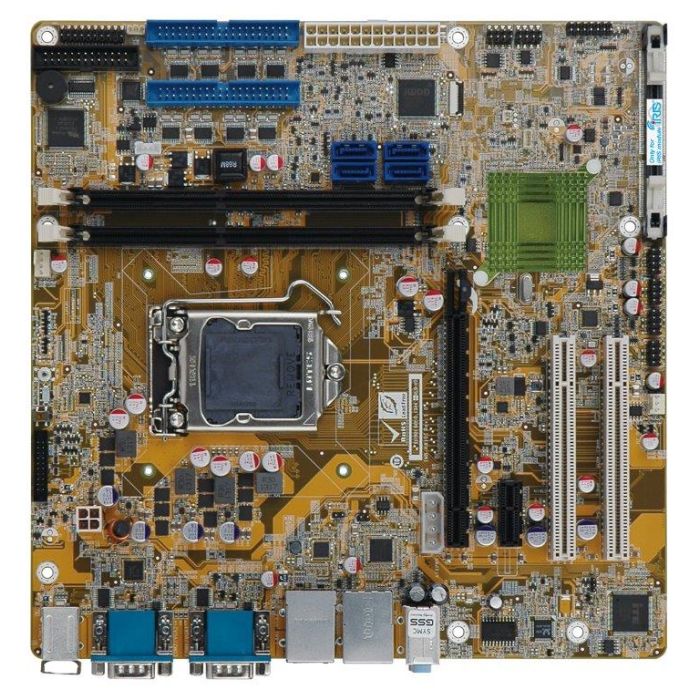

Shop IMB-H810-i2 micro-ATX Motherboard

IEI Integration Corp.

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IMB-H810-i2 micro-ATX Motherboard

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

· LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

· Dual-channel DDR3 1333/1600 MHz support up to 16 GB

· Intel® HD Graphics technology integrates high-performance graphics and media processing

· Supports legacy PCI 32-bit 33/66 MHz

· Ten COM ports, USB 3.0 and SATA supported

· TPM V1.2 hardware security function supported by TPM module

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

· Support IPMI 2.0 via iRIS-2400 module

· IEI jumper-less function

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	CF-1156A-RS-R11 CF-1156E-R11
Display
Display	VGA1 (up to 1920x1200 @ 60 Hz) VGA2 (up to 1920x1200 @ 60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
Environment
Humidity	10% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C
Expansion Slots
Expansion Slots	1 x PCIe x16 slot (Gen 3) 1 x PCIe x1 slot 2 x PCI slot
I/O Interface
Audio	Line-in, Line-out (with 3.5W +3.5W audio amplifier), Mic
Ethernet	LAN1: Intel® I217LM LAN2: Intel® I210-AT PCIe controller with NCSI support
I/O Interface
I/O Interface	2 x USB 3.0
	2 x USB 2.0
	1 x LPT
	8 x Internal USB 2.0
	8 x Internal RS-232
	2 x RS-232
Option
iRIS	1 x iRIS-2400 slot
Power
Power consumption	3.3V@0.64A, 5V@4.20A, 12V@0.14A, Vcore_12V@3.88A, 5VSB@0.20A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (2 x 4GB) 1333MHz DDR3 memory)
System
Chipset	Intel® H81
CPU	Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
CPU Socket	LGA1150
Memory Max.	Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16GB
Storage	2 x SATA 3Gb/s 2 x SATA 6Gb/s
Watchdog Timer
Watchdog Timer	Software programmable, support 1~255 sec system reset
