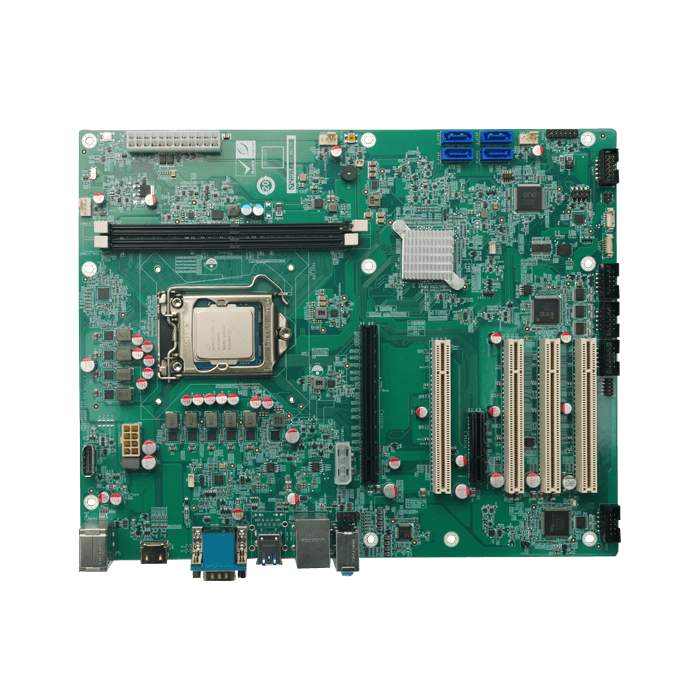

IMBA-H420 ATX Motherboard Intel 10th/11th Gen i9/i7/i5/i3/Cele/Pent

IEI Integration Corp.

ATX industrial motherboard supporting 10th /11th Intel Core i9/i7/i5/i3, Celeron, Pentium processors

In stock

SKU
IMBA-H420

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IMBA-H420 ATX Motherboard Intel 10th/11th Gen i9/i7/i5/i3/Cele/Pent

ATX motherboard supports 14nm LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Key Features:

  • LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
  • Dual-channel DDR4 2933MHz
  • HDMI, DP, and VGA display output
  • 1x PCIe x16，1x PCIe x4 and 4 x PCI expansion slots

More Information

brand IEI Integration Corp.
Specifications

Hardware Spec.

Form Factor
Form Factor ATX Motherboard
System
CPU LGA1200 Intel 10/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
Chipset Intel H420E
Memory Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight 700g
Storage
Storage 4 x SATA : 6Gb/s (no RAID)
I/O Interface
Display Output 1 x VGA: up to 1920 x 1200@60Hz
  1 x HDMI: up to 4096 x 2160@30Hz
  1 x DP++: up to 4096 x 2304@60Hz
Ethernet 1 x LAN: LAN1: Intel I225V 2.5GbE controller
Audio 1 x Line in
  1 x Line out
  1 x Mic
  1 x Front Audio: 2x5 pin
  1 x HD Audio: Realtek ALC888S HD codec
I/O Interface 1 x External RS-232
  External RS-232/422/485 : RS-485 support AFC
  4 x Internal RS-232: 2x5 pin, P=2.54
  1 x Internal RS-232/422/485 : 2x5 pin, P=2.54
  2 x External USB 2.0: Type-A
  4 x External USB 3.2 Gen1x1: 5Gb/s(Type-A)
  2 x Internal USB 2.0: 2x4 pin, P=2.54
  1 x PS/2
  1 x DIO: 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16
  1 x PCIe x4
  4 x PCI Slot
Other Features
TPM Intel PTT(TPM 2.0)
Power
Power Consumption 3.3V@0.84A, 5V@8.12A, 12V@3.77A, 5VSB@0A
(Intel® Core™ i5-10500TE CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-H420-R10 ATX motherboard supports 14nm LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple independent displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMBA-H420 single-board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
Description

ATX motherboard supports 14nm LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Key Features:

  • LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
  • Dual-channel DDR4 2933MHz
  • HDMI, DP, and VGA display output
  • 1x PCIe x16，1x PCIe x4 and 4 x PCI expansion slots
pdf
Datasheet
