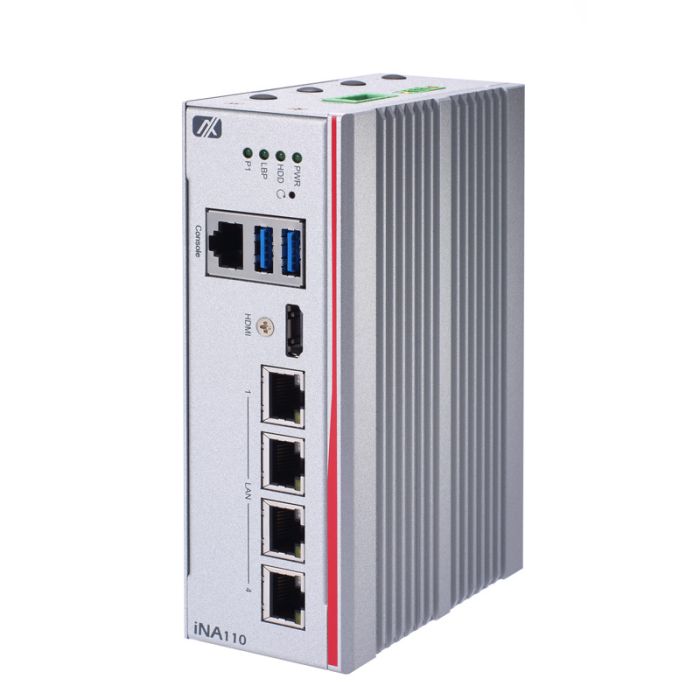

iNA110 DIN-Rail Fanless Cybersecurity Gateway

Axiomtek

DIN-Rail Cybersecurity Gateway with Intel Atom® x5-E3930/E3940 Processor and 4 LAN with LAN Bypass

Key Features:

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
  • 4 GbE RJ-45 (Intel® I210-IT) with LAN Bypass
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • Ideal for ICS cybersecurity and critical infrastructure protection

In stock

SKU
iNA110-E3930-A/E3940-A

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / iNA110 DIN-Rail Fanless Cybersecurity Gateway

Axiomtek's DIN-rail cybersecurity gateway series is a highly scalable and rugged hardware solution for critical infrastructure in harsh industrial environments. It has a DIN-rail form factor for fast installation, a wide operating temperature range for industrial-grade requirements and abundant I/O interfaces to connect to industrial control systems and equipment.



More Information

Brand Axiomtek
Specifications

Form Factor

  • DIN-rail, wall mount (optional)

CPU

  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)

Chipset

  • SoC integrated

System Memory

  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory

BIOS

  • AMI

Ethernet

  • 4 x GbE RJ-45 (Intel® I210-IT) with 1-pair LAN Bypass

Storage

  • 1 x 2.5" SATA 3.0 SSD

  • 1 x Half-size mSATA (occupied 1 x PCI Express Mini Card slot)

Expansion

  • 1 x Half-size PCIe Mini Card slot with SATA/USB signal

  • 1 x Full-size PCIe Mini Card slot with USB signal (with 1 x SIM slot)

I/O Interface

  • 4 x GbE RJ-45 (Intel® I210-IT) with 1-pair LAN Bypass

  • 1 x HDMI

  • 2 x USB 3.0

  • 1 x Console port (RJ-45)

  • 4 x Copper LAN port

  • 1 x COM port (RS-232/422/485) with terminal block

  • 1 x Power input connector

  • 1 x Tact switch for H/W reset

  • 4 x Antenna hole

Power Supply

  • 1 x Terminal block, 9 to 36 VDC (typical 12/24V)

Others

  • TPM 2.0

Watchdog Timer

  • 255 stepping for system reset

Dimensions
(W x D x H)

  • 51 x 110 x 155 mm (2.01" x 4.33" x 6.10")

Operating Temperature

  • -40°C to +70°C (-40°F to +158°F)

Weight (net/gross)

  • TBD

OS

  • Linux, Windows® 10

Certifications

  • CE (Class A), FCC (Class A)
Description

Axiomtek's DIN-rail cybersecurity gateway series is a highly scalable and rugged hardware solution for critical infrastructure in harsh industrial environments. It has a DIN-rail form factor for fast installation, a wide operating temperature range for industrial-grade requirements and abundant I/O interfaces to connect to industrial control systems and equipment.
