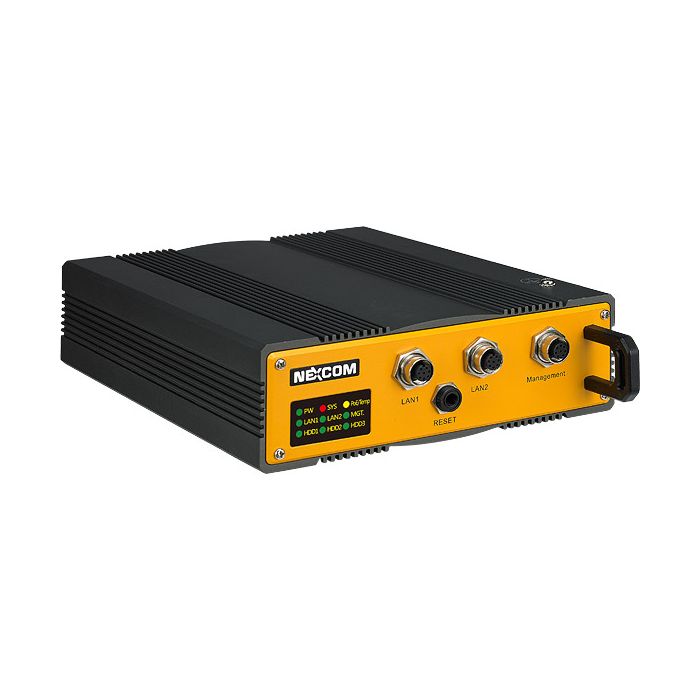

iNAS 330 Rugged-Design Industry Storage

Rugged-Design Industry Storage with 2 Gigabit LAN ports with PoE+, wide -40°C ~ 70°C temp and EN50155 compliance

In stock

SKU
iNAS 330

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / iNAS 330 Rugged-Design Industry Storage

The iNAS330 is a network-attached storage (NAS) with a highly rugged design that was developed to deliver high performance and reliability storage in difficult settings. It can capture data correctly in severe conditions such as oil exploration, transportation, and industrial automation because it is equipped with SSD storage technology.



It also has a number of data backup options. It supports the FTP service as well as the SMB/CIFS protocol for cross-platform file sharing. Atlas OS delivers real-time information, a toolkit, widgets, and a simple manner of operation; in the future, the software centre will give more programme extensions based on application needs. With a high-resolution camera, the iNAS330 may also be used as a networking surveillance storage device. The file system can be utilised for video recording, and it supports RAID 5, which provides improved data safety.



The iNAS330 supports Power over Ethernet (PoE/PoE+) and adheres to IEEE 802.3af/ IEEE 802.3at regulations. It features a dual PoE+ interface for power redundancy. The iNAS330 is a fanless, thermolysis-efficient IP 54-rated chassis with dust and water protection.

Features

  • 2 Gigabit Ethernet ports for data/power redundancy with PoE+
  • Data protection in harsh environments
  • Fully compliant with EN50155 (railway applications), EN61373 (vibrations & shocks)
  • Wide temperature range support, -40°C ~ 70°C
  • IP rating: IP 54 (NEMA)

More Information

Specifications
Hardware Features Computer
- Processor: Dual Cortex®-A9 CPU
- Storage: Up to 3 x 2.5" HDD/SSD (optional)
Ethernet 2 x Gigabit LAN ports for data redundancy (M12)1 x Gigabit LAN port for management (M12)
Button Reset button: Reboot System/Reset to factory default
LEDs Power LED: power On/OffSystem LED: system statusPoE/Temp LED: PoE/Temp statusHDD LED: HDD1, HDD2,HDD3 (read/write/fail)LAN LED: 10/100/1000M x3 (link/activity)
Power Requirements Input: PoE (IEEE 802.3af), or PoE + (IEEE 802.3at)Power redundancy
HS Control Smart heating system
Physical Characteristics FanlessHousing: metal, IP 54 protectionMounting: wall mount (optional)
Environmental Specification Operating temperature:
-40°C ~ +70°C (-40°F ~ +158°F) For SSD
-25°C ~ +55°C (-13°F ~ +131°F) For HDD
Storage temperature: -40°C ~ 85°C (-40°F ~ 176°F)Humidity: 5% - 95%, non-condensing
Certifications FCC/CERoHS/WEEE
Compliance EN50155 (railway applications)IEC61373 (vibrations & Shocks)EN60950; EN61000 (immunity, emission)EN60068-2-30/IEC68-2-30 (environmental testing)
Package Content iNAS 330 unit x 1QIG x 1CD x 1
Optional Accessories Wall-mount-kit: 2 extra brackets and screwsM12 cables: waterproof 8pin male M12 to RJ45 gigabit Ethernet cable, rated IP67
System Dimensions 246mm (w) x 194mm (D) x 60mm (H) (9.69" x 7.64" x 2.36")
Software Features OS: Atlas OS ™
- Web-based GUI (based on HTML5 and CSS3)
- Centralized navigation panel and Dual-desktop system: Navigation Panel: For system configurations, with some toolkits on the toolbar
- Home: for applications operations
- Dashboard: For widgets exhibitionAPPs
- Storage Manager
- RAID management (JBOD, RAID1, RAID 5)/Auto RAID rebuilding
- Data Vault
- Log Book
- Software CenterWidgets
- System Guardian
- Network SurveillanceConfigurations
- Files and permissions
- Network and connectivity
- System and devicesToolkit
- Profile: account management
- Real-time notification
- System information
- Network status
Client O.S. support Windows 7+, Windows Server 2003 R2, 2008, 2008 R2 & 2012 or laterLinux & UNIXMac OS X 10.7 or later
Web Browsers Support Mozilla FirefoxMac SafariGoogle ChromeOpera
Networking HTTP/H - SAMBA 2 (CIFS),Open SSL (TLS),FTP / FTPSHTTP 1.1 / HTTPSIPv4,Link Aggregation, DHCP,NTP,HTTP AuthenticationRESTful API


Description

The iNAS330 is a network-attached storage (NAS) with a highly rugged design that was developed to deliver high performance and reliability storage in difficult settings. It can capture data correctly in severe conditions such as oil exploration, transportation, and industrial automation because it is equipped with SSD storage technology.



It also has a number of data backup options. It supports the FTP service as well as the SMB/CIFS protocol for cross-platform file sharing. Atlas OS delivers real-time information, a toolkit, widgets, and a simple manner of operation; in the future, the software centre will give more programme extensions based on application needs. With a high-resolution camera, the iNAS330 may also be used as a networking surveillance storage device. The file system can be utilised for video recording, and it supports RAID 5, which provides improved data safety.



The iNAS330 supports Power over Ethernet (PoE/PoE+) and adheres to IEEE 802.3af/ IEEE 802.3at regulations. It features a dual PoE+ interface for power redundancy. The iNAS330 is a fanless, thermolysis-efficient IP 54-rated chassis with dust and water protection.

Features

  • 2 Gigabit Ethernet ports for data/power redundancy with PoE+
  • Data protection in harsh environments
  • Fully compliant with EN50155 (railway applications), EN61373 (vibrations & shocks)
  • Wide temperature range support, -40°C ~ 70°C
  • IP rating: IP 54 (NEMA)
