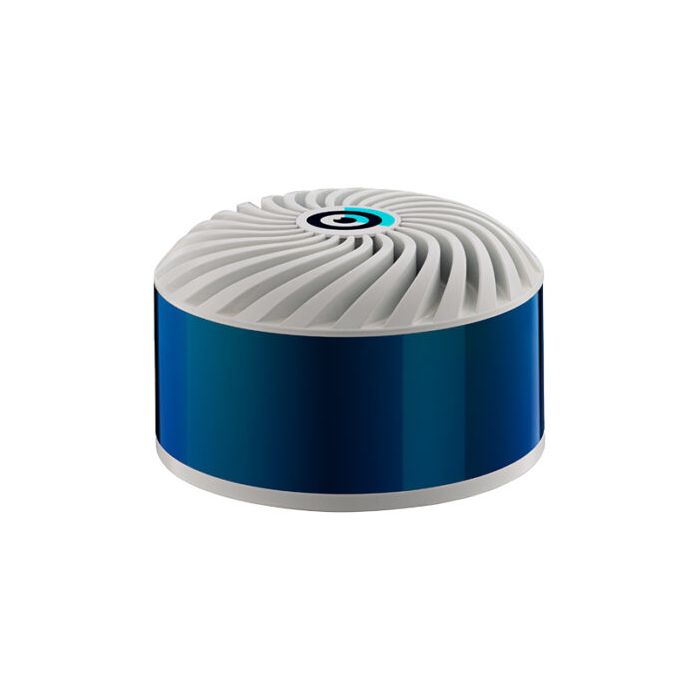

Innoviz360 Next-Generation 360º LiDAR Sensor

360º LiDAR Sensor

In stock

SKU
Innoviz360

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / Innoviz360 Next-Generation 360º LiDAR Sensor

The next-generation, high-performance 360o LiDAR from Innoviz is designed for use in both automotive and non-automotive applications. The mass production of Level 4 to Level 5 autonomous vehicles as well as non-automotive industries like heavy machinery, smart cities, logistics, and construction are all targeted by its unmatched 3D perception performance. The lightweight, low-power, functionally safe, and cost-effective LiDAR is resistant to the sun's rays and the elements. For distances up to 300m, the sensor provides a dense, extremely accurate, 3D point cloud with unmatched angular resolution at a high frame rate. The pre-configured functionality supported by Innoviz360 includes multiple reflections, pixel summation, frame rate, and FOV scanning configuration with Region of Interest (ROI).

Key Features:

  • 0.3m-300m Detection Range
  • 0.05°x 0.05° Maximum Angular Resolution (HxV)
  • 360°x64° Maximum Field of View (HxV)
  • 0.5-25 FPS Programmable Frame Rate
  • 300-1280 Lines per Frame Configurable Scanning Lines
  • IP6K6K, IP6K9K, IP6K7 IP Rating
  • 70x200x60mm Dimensions (HxWxD)
  • -40°C to 85°C Operating Temperature

More Information

Specifications

LASER

  • Laser Product Class
    • Class 1, Eye-safe (IEC-60825-1)
  • Wavelength
    • 905nm

INTERFACES

  • Data, Command and Control
    • Automotive Ethernet (1000Base-T1)
  • Time Synchronization
    • PTP over Ethernet (1588V2/802.1AS)

MECHANICAL/ELECTRICAL

  • Typical Power Consumption
    • 25W
  • Operating Voltage
    • 6.5 to 32VDC
  • Dimensions
    • 70x200x60mm (HxWxD)
  • Weight
    • ~700g
  • Ambient Temperature
    • Operating
      • -40°C to 85°C
    • Storage
      • -40°C to 105°C
  • Lifetime
    • 15 years or 300,000km

OUTPUTS

  • Point Cloud Attributes
    • Per reflection: Distance, reflectivity, and confidence
    • Per-pixel: Timestamp, number of reflections, blockage indication, and coordinates of pixel
    • Per frame: Window blockage detection, frame sequence number
  • Point Cloud Reflections
    • Maximum 3
  • Pixel Latency
    • <10msec
  • Time Stamp
    • 10 μsec accuracy for every pixel
Description

The next-generation, high-performance 360o LiDAR from Innoviz is designed for use in both automotive and non-automotive applications. The mass production of Level 4 to Level 5 autonomous vehicles as well as non-automotive industries like heavy machinery, smart cities, logistics, and construction are all targeted by its unmatched 3D perception performance. The lightweight, low-power, functionally safe, and cost-effective LiDAR is resistant to the sun's rays and the elements. For distances up to 300m, the sensor provides a dense, extremely accurate, 3D point cloud with unmatched angular resolution at a high frame rate. The pre-configured functionality supported by Innoviz360 includes multiple reflections, pixel summation, frame rate, and FOV scanning configuration with Region of Interest (ROI).

Key Features:

  • 0.3m-300m Detection Range
  • 0.05°x 0.05° Maximum Angular Resolution (HxV)
  • 360°x64° Maximum Field of View (HxV)
  • 0.5-25 FPS Programmable Frame Rate
  • 300-1280 Lines per Frame Configurable Scanning Lines
  • IP6K6K, IP6K9K, IP6K7 IP Rating
  • 70x200x60mm Dimensions (HxWxD)
  • -40°C to 85°C Operating Temperature
