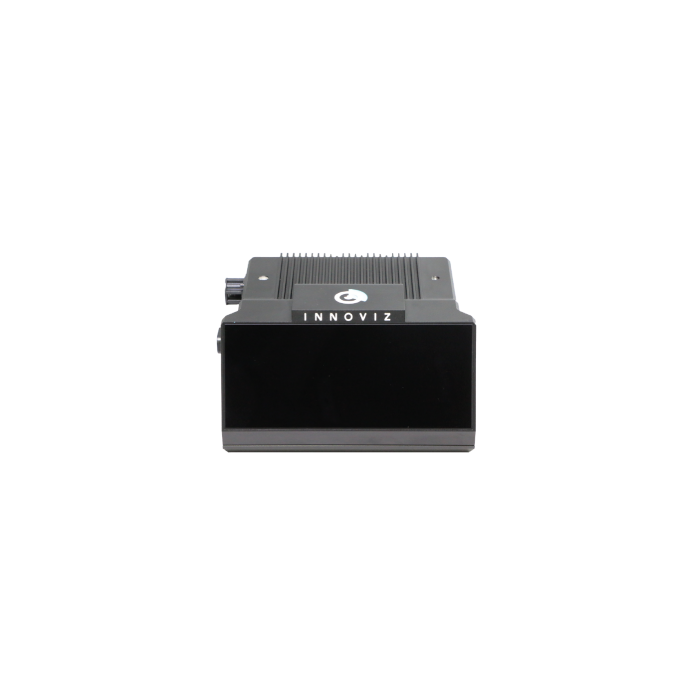

InnovizTwo Next-Generation Automotive-Grade LiDAR Sensor

Automotive-Grade LiDAR Sensor

In stock

SKU
InnovizTwo

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / InnovizTwo Next-Generation Automotive-Grade LiDAR Sensor

With unmatched 3D perception performance, InnovizTwo is the company's next-generation of high-performance, automotive-grade LiDARs that are intended for mass-production of Level 2+ to Level 5 autonomous vehicles.
The lightweight, low-power, functionally safe, and cost-effective LiDAR is resistant to the sun's rays and the elements. For distances up to 300m, the sensor provides a dense, extremely accurate, 3D point cloud with unmatched angular resolution at a high frame rate. The pre-configured functionality supported by InnovizTwo includes multiple reflections, pixel summation, frame rate, and FOV scanning configuration with Regions of Interest (ROI). For different applications, there are a variety of scanning configurations available. Different resolutions per pixel type are supported in each section of the FOV (native or summation pixel).

Key Features:

  • 0.05°x0.05° Maximum Angular Resolution (HxV)
  • 10, 15, or 20 FPS Pre Configurable Frame Rate
  • 0.3m-300m Detection Range
  • 120°x 40° Maximum Field of View (HxV)
  • 60x137x128 Dimensions (HxWxD)
  • ASIL B(D)ISO 26262 Compliant

More Information

Specifications

LASER

  • Laser Product Class
    • Class 1, Eye-safe (IEC-60825-1)
  • Wavelength
    • 905nm

INTERFACES

  • Data, Command and Control
    • Automotive Ethernet (1000Base-T1)
  • Time Synchronization
    • PTP over Ethernet (1588V2/802.1AS)

MECHANICAL/ELECTRICAL

  • Typical Power Consumption
    • 20W
  • Operating Voltage
    • 6.5 to 32VDC
  • Dimensions
    • 60x137x128mm (HxWxD)Weight ~700g
  • Connectors
    • Data
      • Rosenberger H-MTD®
    • Power
      • Rosenberger MQS
  • Ambient Temperature
    • Operating -40°C to 85°C
    • Storage -40°C to 105°C
  • Lifetime
    • 15 years or 300,000km

OUTPUTS

  • Point Cloud Attributes
    • Per reflection: Distance, reflectivity, and confidence
    • Per-pixel: Timestamp, number of reflections, blockage indication, and coordinates of pixel
    • Per frame: Window blockage detection (by region); frame sequence number
  • Point Cloud Reflections
    • Maximum 3
  • Pixel Latency
    • <10msec
  • Time Stamp
    • 10 μsec accuracy for every pixel
Description

With unmatched 3D perception performance, InnovizTwo is the company's next-generation of high-performance, automotive-grade LiDARs that are intended for mass-production of Level 2+ to Level 5 autonomous vehicles.
The lightweight, low-power, functionally safe, and cost-effective LiDAR is resistant to the sun's rays and the elements. For distances up to 300m, the sensor provides a dense, extremely accurate, 3D point cloud with unmatched angular resolution at a high frame rate. The pre-configured functionality supported by InnovizTwo includes multiple reflections, pixel summation, frame rate, and FOV scanning configuration with Regions of Interest (ROI). For different applications, there are a variety of scanning configurations available. Different resolutions per pixel type are supported in each section of the FOV (native or summation pixel).

Key Features:

  • 0.05°x0.05° Maximum Angular Resolution (HxV)
  • 10, 15, or 20 FPS Pre Configurable Frame Rate
  • 0.3m-300m Detection Range
  • 120°x 40° Maximum Field of View (HxV)
  • 60x137x128 Dimensions (HxWxD)
  • ASIL B(D)ISO 26262 Compliant
