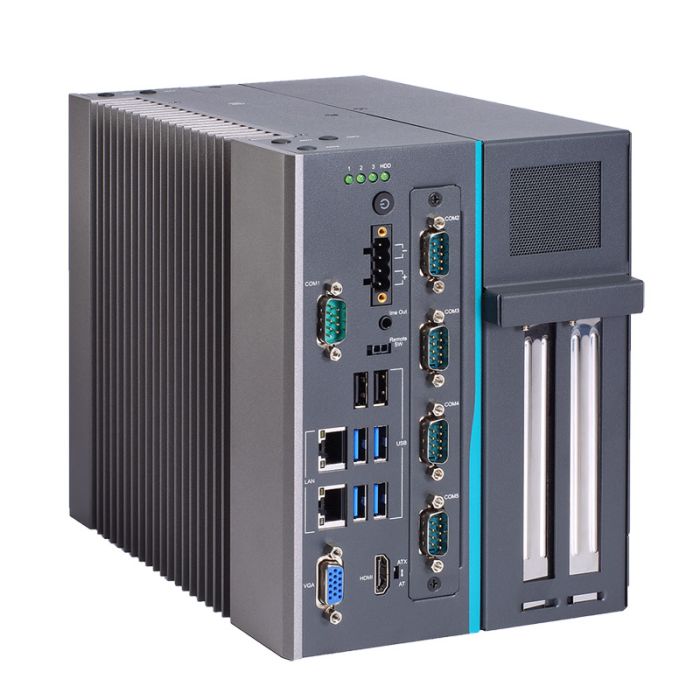

IPC962-525 2-slot Fanless 8th/9th Gen -10°C to +60°C

Axiomtek

2-slot Industrial System with LGA1151 Socket 8th/9th Gen Intel® Core™ i7/i5/i3 Processor, Intel® H310/Intel® Q370, Front-access I/O, PCIe and PCI Slots

In stock

SKU
IPC962-525

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPC962-525 2-slot Fanless 8th/9th Gen -10°C to +60°C

  • NVIDIA® GPU card, up to 125W
  • NVIDIA® Tesla T4 GPU Card
  • M.2 Key B slot for 5G wireless connection (optional)
  • Supports RAID 0,1 (Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT 12 (Intel® Q370)

More Information

Brand Axiomtek
Specifications
CPU
  • 9th/8th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H310/Intel® Q370
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • Available from extension I/O modules
USB
  • Intel®H310:
  • 4 x USB 3.1 Gen1
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • Intel®Q370:
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports available from extension I/O modules
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM)
  • More LAN ports available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • Intel® H310: 2 x 2.5" swappable HDD/SSD (7/9.5 mm height)
  • Intel® Q370: 2 x 2.5" swappable HDD/SSD (7/9.5 mm height), supports RAID 0,1
  • 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
Expansion
  • Intel® H310: 1 x Full-size PCI Express Mini Card slot (USB interface)
  • Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B slot (3050)
  • 2 x PCIe/PCI slots
  • 1 x SIM slot
  • 1 x I/O module slot
Others
  • 1 x Switch for power on/off w/LED (ATX)
  • 1 x Remote switch
  • 1 x 4-pin terminal block
  • 1 x AT/ATX selectable switch
  • TPM 2.0
Power Supply
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with Intel® 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x D x H)
  • 147.5 x 192 x 230 mm (5.80" x 7.54" x 9.04")
Weight (net/gross)
  • 4.382 kg (9.66 lb)/5.346 kg (11.80 lb)
Description
  • NVIDIA® GPU card, up to 125W
  • NVIDIA® Tesla T4 GPU Card
  • M.2 Key B slot for 5G wireless connection (optional)
  • Supports RAID 0,1 (Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT 12 (Intel® Q370)
