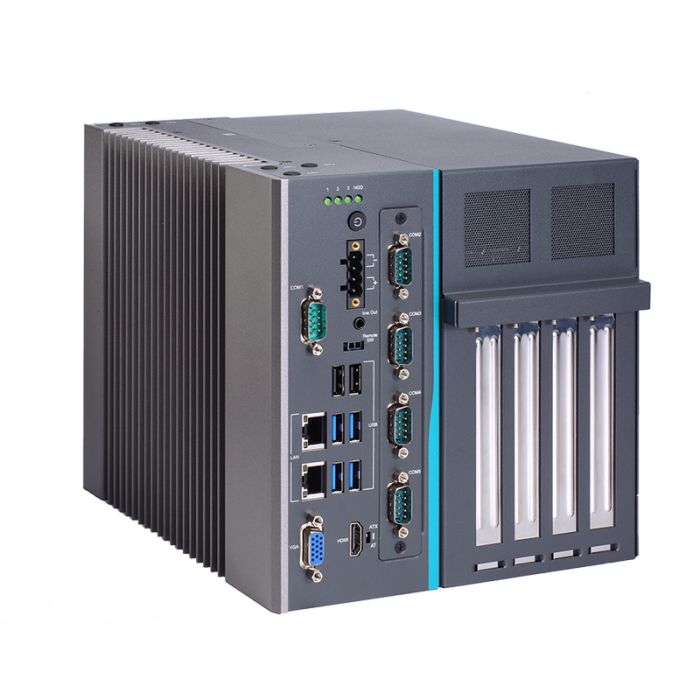

Shop IPC964-525 4-slot 8/9th Gen, NVIDIA GPU, up to 125W

Axiomtek

Fanless 4 Slot, 8th/9th Gen supporting NVIDIA® GPU card, up to 125W

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPC964-525 4-slot 8/9th Gen, NVIDIA GPU, up to 125W

Brand

Axiomtek

Specifications

CPU	9th/8th gen Intel® Core™ processor, up to 65W
Chipset	Intel® Q370
System Memory	2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232)
USB	4 x USB 3.1 Gen2 2 x USB 2.0 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm) More USB ports available from extension I/O modules
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & i219-LM) More LAN ports available from extension I/O modules
Display	1 x VGA 1 x HDMI
Digital I/O	Available from extension I/O modules
Audio	1 x Line-out
Storage	2 x 2.5" swappable HDD/SSD (7/9.5 mm height), support RAID 0,1 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
Expansion	1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B 3050 slot 2 x PCIe/PCI slots 1 x SIM slot 1 x I/O module slot
Others	1 x Switch for power on/off w/LED (ATX) 1 x Remote switch 1 x 4-pin terminal block 1 x AT/ATX selectable switch TPM 2.0
Power Supply	Type: ATX/AT Input: 24 VDC (uMin=19V/uMax=30V)
Construction	Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature	-10°C to +60°C (+14°F to +140°F) with Intel® 9th/8th gen Intel® Core™ and W.T. HDD/SSD
Relative Humidity	10% to 90%, non-condensing
Dimensions (W x D x H)	188.1 mm (7.39") (W) x 192 mm (7.4") (H) x 230 mm (9.04") (D)
Weight (net/gross)	4.8 Kg (10.56 lb)/5.9 Kg (12.98 lb)
