Description /

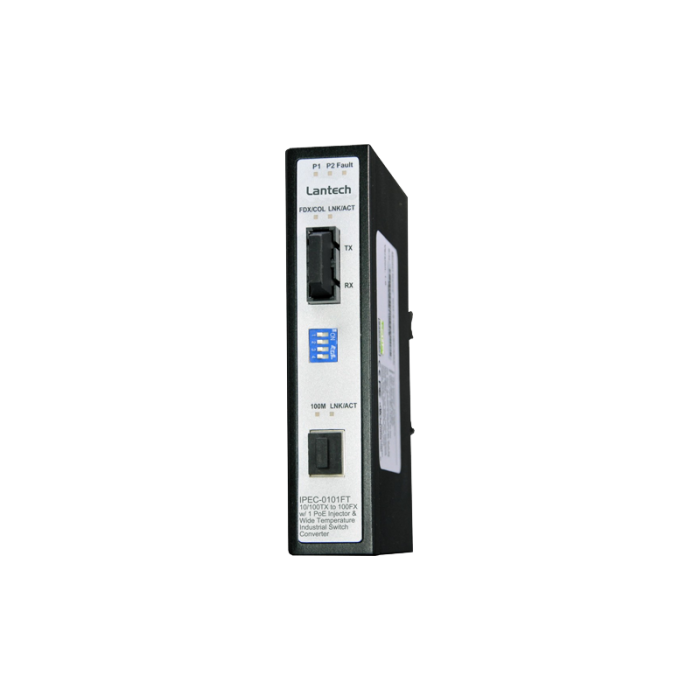

IPEC-0101FT - 1 port media converter with PoE injector
IEEE Standards
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet
Link Lose Forward
TX to Fiber: If TX port link down, the media converter will force Fiber port to link down Fiber to TX: If Fiber port link down, the media converter will force TX port to link down
PoE pin assignment
RJ-45 port support IEEE 802.3af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1, 2. Negative (VCC-): RJ-45 pin 3, 6. Data (1,2,3,6 )
FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3(RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet
Link Lose Forward
TX to Fiber: If TX port link down, the media converter will force Fiber port to link down Fiber to TX: If Fiber port link down, the media converter will force TX port to link down
PoE pin assignment
RJ-45 port support IEEE 802.3af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1, 2. Negative (VCC-): RJ-45 pin 3, 6. Data (1,2,3,6 )
FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3(RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4
