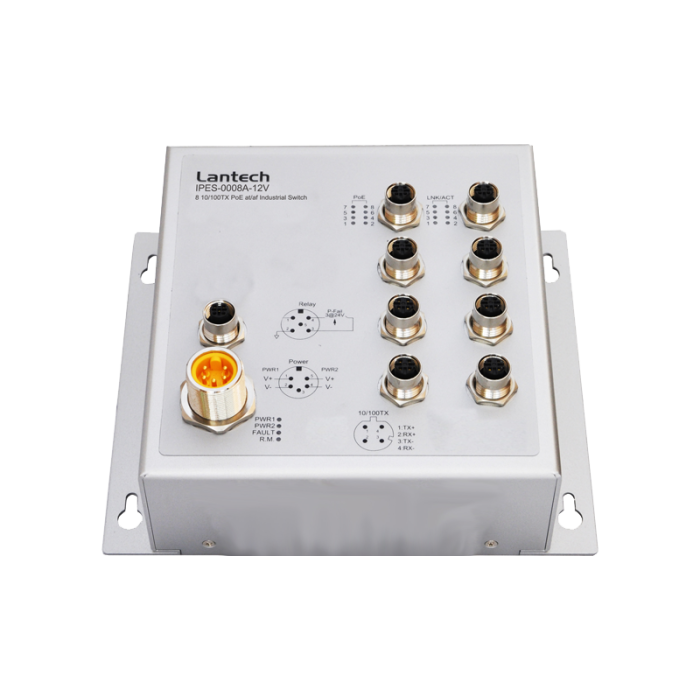

Shop IPES-0008A - 8 port M12, unmanaged PoE switch

- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output

In stock

SKU: IPES-0008A

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPES-0008A - 8 port M12, unmanaged PoE switch

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3at/af Power over Ethernet}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{Power connector: 1 x M23, 5-pole A-coded, Male} _{Relay contact : 1 x M12 5-pole A-coded}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}
_{Power Supply}	_{9.5~60DC for 12V model} _{72V model: 50.4~90VDC dual input} _{110V model : 43~160VDC dual input with input isolation}
_{Power Consumption}	_{10W for 12/24/48VDC} _{13.5W for 72V/110V}
_{Power Budget}	_{240W for 45~56V input} _{(55V input is recommended for 802.3at 30W applications)} _{80W for 12V input} _{120W for 24V input} _{80W for 72V Input} _{80W for 110V Input}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)} _{(72V model: -40°C~60°C / -40°F~140°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & Report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate} _{E-Mark E4 Certificate}
_Warranty	_{5 years}

More Information

Description

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3at/af Power over Ethernet}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{Power connector: 1 x M23, 5-pole A-coded, Male} _{Relay contact : 1 x M12 5-pole A-coded}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}
_{Power Supply}	_{9.5~60DC for 12V model} _{72V model: 50.4~90VDC dual input} _{110V model : 43~160VDC dual input with input isolation}
_{Power Consumption}	_{10W for 12/24/48VDC} _{13.5W for 72V/110V}
_{Power Budget}	_{240W for 45~56V input} _{(55V input is recommended for 802.3at 30W applications)} _{80W for 12V input} _{120W for 24V input} _{80W for 72V Input} _{80W for 110V Input}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)} _{(72V model: -40°C~60°C / -40°F~140°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & Report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate} _{E-Mark E4 Certificate}
_Warranty	_{5 years}

Product Data Sheet

IPES-0008A - 8 port M12, unmanaged PoE switch

Have a Question about this product?

Description / IPES-0008A - 8 port M12, unmanaged PoE switch

IEEE Standard

IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port

Mac Address

8K MAC address table

Connector

10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function Power connector: 1 x M23, 5-pole A-coded, Male Relay contact : 1 x M12 5-pole A-coded

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Ethernet: Link/Activity (Green)

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Power Supply

9.5~60DC for 12V model 72V model: 50.4~90VDC dual input 110V model : 43~160VDC dual input with input isolation

Power Consumption

10W for 12/24/48VDC 13.5W for 72V/110V

Power Budget

240W for 45~56V input (55V input is recommended for 802.3at 30W applications) 80W for 12V input 120W for 24V input 80W for 72V Input 80W for 110V Input

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 75°C (-40°F ~ 167°F) (72V model: -40°C~60°C / -40°F~140°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Case Dimension

Aluminum case. IP-67, 215mm(W)x185mm(H)x71mm(D) Aluminum case, IP-43 202mm(W)x172mm(H)x62.5mm(D)

Weight

1.4kgs (IP67); 1.2kgs(IP43)

Installation

Din Rail**, Wall Mount Design

EMC

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field), CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC61373 (Shock), EN61373 (Shock and Vibration)

Certificates & Report

EN50155/EN50121-3-2/EN50121-4 Certificate EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate E-Mark E4 Certificate

Warranty

5 years

More Information

IEEE Standard

IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port

Mac Address

8K MAC address table

Connector

10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function Power connector: 1 x M23, 5-pole A-coded, Male Relay contact : 1 x M12 5-pole A-coded

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Ethernet: Link/Activity (Green)

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Power Supply

9.5~60DC for 12V model 72V model: 50.4~90VDC dual input 110V model : 43~160VDC dual input with input isolation

Power Consumption

10W for 12/24/48VDC 13.5W for 72V/110V

Power Budget

240W for 45~56V input (55V input is recommended for 802.3at 30W applications) 80W for 12V input 120W for 24V input 80W for 72V Input 80W for 110V Input

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 75°C (-40°F ~ 167°F) (72V model: -40°C~60°C / -40°F~140°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Case Dimension

Aluminum case. IP-67, 215mm(W)x185mm(H)x71mm(D) Aluminum case, IP-43 202mm(W)x172mm(H)x62.5mm(D)

Weight

1.4kgs (IP67); 1.2kgs(IP43)

Installation

Din Rail**, Wall Mount Design

EMC

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field), CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC61373 (Shock), EN61373 (Shock and Vibration)

_{IEEE Standard}

_{IEEE802.3 10BASE-T Ethernet}
_{IEEE802.3u 100BASE-T Ethernet}
_{IEEE802.3x Flow Control and Back Pressure}
_{IEEE802.3at/af Power over Ethernet}

_{Transfer Rate}

_{14,880pps for Ethernet port}
_{148,800pps for Fast Ethernet port}

_{Mac Address}

_{8K MAC address table}

_Connector

_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function}
_{Power connector: 1 x M23, 5-pole A-coded, Male}
_{Relay contact : 1 x M12 5-pole A-coded}

_Protocol

_CSMA/CD

_LED

_{Per unit: Power 1 (Green), Power 2 (Green),}
_{Ethernet: Link/Activity (Green)}

_{PoE pin assignment}

_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}

_{Power Supply}

_{9.5~60DC for 12V model}

_{72V model: 50.4~90VDC dual input}
_{110V model : 43~160VDC dual input with input isolation}

_{Power Consumption}

_{10W for 12/24/48VDC}
_{13.5W for 72V/110V}

_{Power Budget}

_{240W for 45~56V input}
_{(55V input is recommended for 802.3at 30W applications)}
_{80W for 12V input}
_{120W for 24V input}
_{80W for 72V Input}
_{80W for 110V Input}

_{Operating Humidity}

_{5% to 95% (Non-condensing)}

_{Operating Temperature}

_{-40°C ~ 75°C (-40°F ~ 167°F)}
_{(72V model: -40°C~60°C / -40°F~140°F)}

_{Storage Temperature}

_{-40°C ~ 85°C (-40°F ~ 185°F)}

_{Case Dimension}

_{Aluminum case. IP-67,}
_{215mm(W)x185mm(H)x71mm(D)}
_{Aluminum case, IP-43}
_{202mm(W)x172mm(H)x62.5mm(D)}

_Weight

_{1.4kgs (IP67); 1.2kgs(IP43)}

_Installation

_{Din Rail**, Wall Mount Design}

_EMC

_{FCC Class A,}
_{CE EN61000-4-2 (ESD),}
_{CE EN61000-4-3 (RS),}
_{CE EN-61000-4-4 (EFT),}
_{CE EN61000-4-5 (Surge),}
_{CE EN61000-4-6 (CS),}
_{CE EN61000-4-8 (Magnetic Field),}
_{CE EN61000-6-2,}
_{CE EN61000-6-4}

_{Stability Testing}

_{IEC61373 (Shock), EN61373 (Shock and Vibration)}

_{Certificates & Report}

_{EN50155/EN50121-3-2/EN50121-4 Certificate}
_{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate}
_{E-Mark E4 Certificate}

_Warranty

_{5 years}
