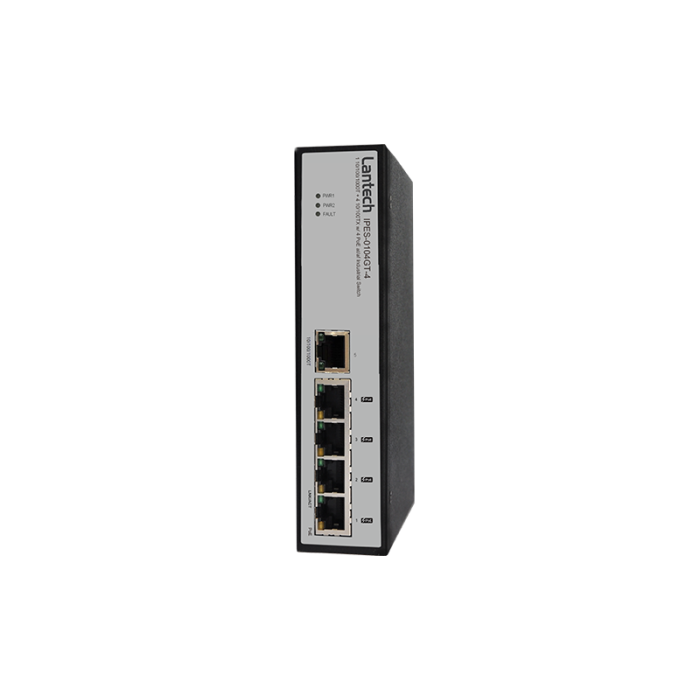

IPES-0104GT-4 - 6 port PoE injector industrial switch
- Conforms to IEEE 802.3at/af PoE standard - Redundant power supply with overload current protection - Wide operating temperature range from -40°C to 75°C (-E model)
Description /
IPES-0104GT-4 - 6 port PoE injector industrial switch
IEEE Standards
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet
RJ-45 port #1 - #4 support IEEE 802.3af End-point; Alternative A mode. Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-) : RJ-45 pin 3,6 Data (1,2,3,6)
Protocol
CSMA/CD
Case Dimension
IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm
Weight
800g
LED
Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) 4 port 10/100TX: Link/Activity (Green), PoE (Yellow) 1 port 10/100/1000T: Link/Activity(Green), Full duplex/Collission(Yellow)
Power Supply
48VDC (45~56VDC),- 48VDC (-45~ -56VDC), 9.5V~56VDC dual input for 12V model
FCC Class A, CE EN61000-4-2(ESD), CE EN61000-4-3(RS), CE EN61000-4-4(EFT), CE EN61000-4-5(Surge), CE EN61000-4-6(CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet
RJ-45 port #1 - #4 support IEEE 802.3af End-point; Alternative A mode. Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-) : RJ-45 pin 3,6 Data (1,2,3,6)
Protocol
CSMA/CD
Case Dimension
IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm
Weight
800g
LED
Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) 4 port 10/100TX: Link/Activity (Green), PoE (Yellow) 1 port 10/100/1000T: Link/Activity(Green), Full duplex/Collission(Yellow)
Power Supply
48VDC (45~56VDC),- 48VDC (-45~ -56VDC), 9.5V~56VDC dual input for 12V model
FCC Class A, CE EN61000-4-2(ESD), CE EN61000-4-3(RS), CE EN61000-4-4(EFT), CE EN61000-4-5(Surge), CE EN61000-4-6(CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4
