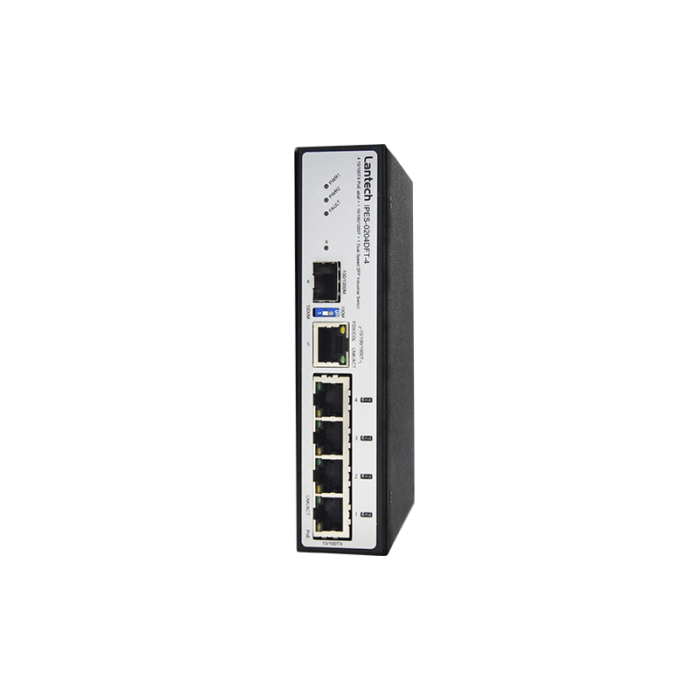

Shop IPES-0204DFT-4 - 6 port industrial switch

- Conforms to IEEE 802.3at/af PoE standard
- Input voltage 12V~48V, Output voltage 48V PoE
- Max PoE budget 240W at 48V,120W at 24V, 90W at 12V input
