Description /

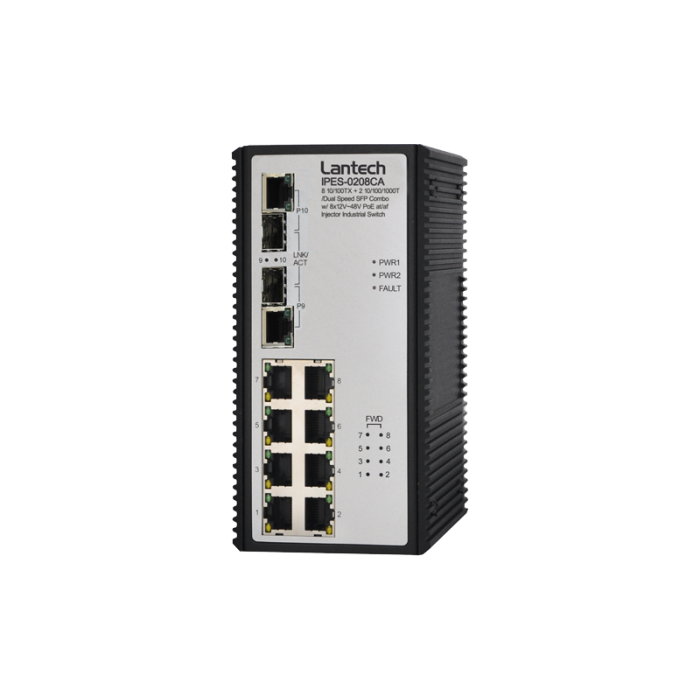

IPES-0208CA-12V - 10 port SFP, PoE injector switch
IEEE Standards
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3af/at Power over Ethernet
RJ-45 port # 1~# 8 support IEEE 802.3af/at End-point, Alternative A mode. Per port provides 15.4W/30W ability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
LED
Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green) Giga port: Link/Activity(Green),Giga Speed (Yellow)
Relay Output
Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
Power Supply
External Power Supply: DC 9~56V, Redundant power D9V~DC 56V and connective removable terminal block.
Power Consumption
10 Watts (Max.); POE Power Budget: 240 Watts (Max.) at 48V input; 120Watts at 24V input; 90Watts at 12V input
Provide DIN rail kit and wall mount ear** for wall mount or DIN-type cabinet install
EMI & EMS
FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 , ISO-7637
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3af/at Power over Ethernet
RJ-45 port # 1~# 8 support IEEE 802.3af/at End-point, Alternative A mode. Per port provides 15.4W/30W ability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
LED
Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green) Giga port: Link/Activity(Green),Giga Speed (Yellow)
Relay Output
Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
Power Supply
External Power Supply: DC 9~56V, Redundant power D9V~DC 56V and connective removable terminal block.
Power Consumption
10 Watts (Max.); POE Power Budget: 240 Watts (Max.) at 48V input; 120Watts at 24V input; 90Watts at 12V input
Provide DIN rail kit and wall mount ear** for wall mount or DIN-type cabinet install
EMI & EMS
FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 , ISO-7637
