- Pro-Ring IIse for self-recovery ring in 20ms - Support PoE Plus 802.3at/af; 240W PoE budget;12V~48V input (12V model) - PoE management incl. Detection, Delay and Scheduling
In stock
SKU
IPES-2208CB
Have a Question about this product?
Description /

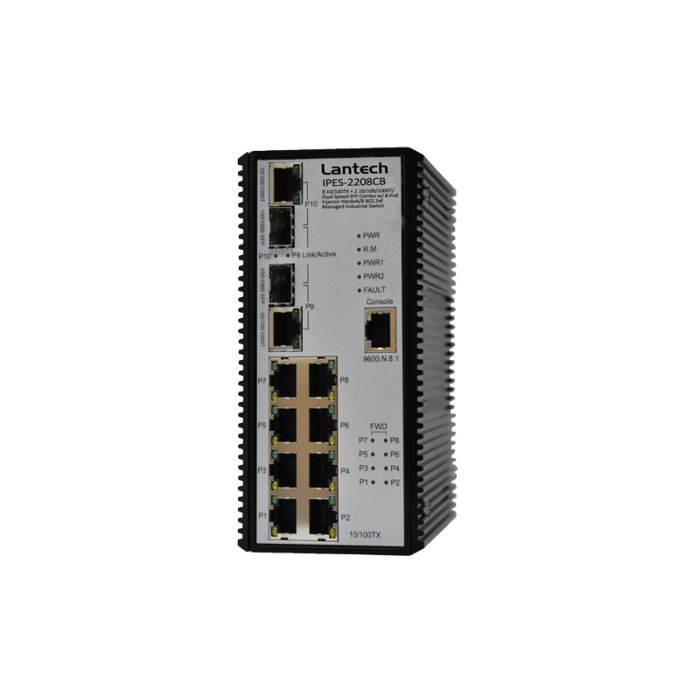

IPES-2208CB - 8 port SFP PoE switch
IEEE Standards
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.3af /at Power over Ethernet IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.1x User Authentication (Radius) IEEE802.1ab LLDP
Switch Architecture
Back-plane (Switching Fabric): 5.6Gbps
Transfer Rate
14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
Packet Buffer
1Mbits
MAC Address
8K MAC address table
Flash ROM
4Mbytes
Connectors
10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function 10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM*** RS-232 connector: RJ-45 type
1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
Protocol
CSMA/CD
PoE pin assignment
RJ-45 port # 1~# 8 support 802.3at/af End-point, Alternative A mode. Per port provides up to 30W@54V capability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
PoE input voltage & Power feed voltage
Input V
Active Mode A /Output V
12V~56V
48V/54V@15W/30W(IPES-2208CB-12V)
45~56V(af)
48V@15W
53~56V(at)
54V@30W
LED
Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow) SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green)
Power Supply
PoE input 48V/54VDC; 12V~54V(IPES-2208CB-12V); Redundant power connective removable terminal block for master and slave power
Overload current protection
Present
Operating Humidity
5% ~ 95% (Non-condensing)
Operating Temperature
Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature for E models: -40°C~75°C / -40°F~167°F
Storage Temperature
-40°C~85°C / -40°F~185°F
Case Dimension
IP-30, 74(W) x 114.3 (D) x 152 (H) mm
Weight
850 g
Fan Number
0
Installation
Wall mount or DIN-type cabinet install
EMI & EMS
FCC Class A, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4
9.86 W (no PoE load) for Ethernet data at full load
PoE Power Budget
240W @48VDC; 120W @24VDC; 90W @12VDC
Warranty
5 years
