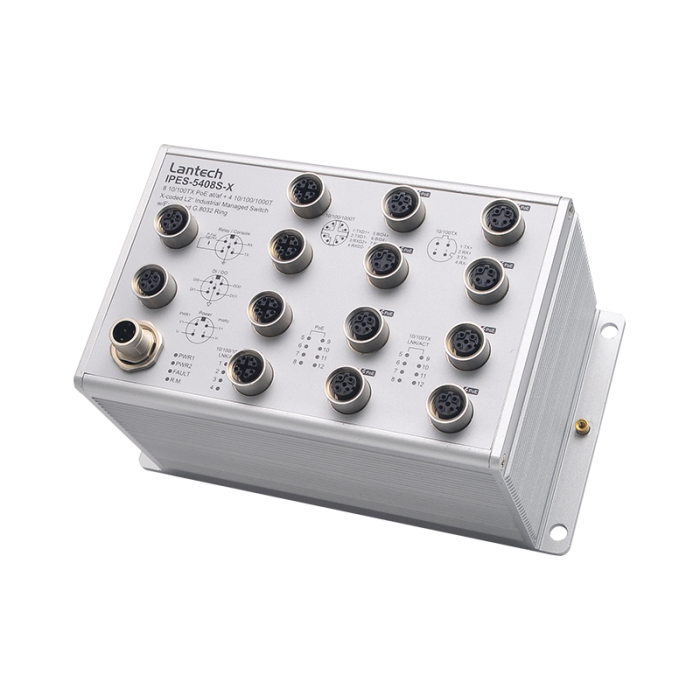

Shop IPES-5408S-X - 12 port, M12 managed switch

- Support PTPv2 one-step transparent clock @ 4 10/100/1000T ports
- EN50155/61373/45545-2 verification*; Compact size
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling

In stock

SKU: IPES-5408S-X

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPES-5408S-X - 12 port, M12 managed switch

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1s Multiple Spanning Tree} _{IEEE 802.3ad Link Aggregation Control Protocol (LACP)} _{IEEE 802.1AB Link Layer Discovery Protocol (LLDP)} _{IEEE 802.1X User Authentication (Radius)} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.3at/af Power over Ethernet}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 9.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Ethernet / Gigabit Fiber port}
_CPU	_{Marvell 800Mhz}
_{Mac Address}	_{16K MAC address table}
_{Jumbo frame}	_{10KB on all ports}
_Connectors	_{10/100TX: 8 x ports M12 4-pole D-coded with Auto MDI/MDI-X function} _{10/100/1000T: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function} _{RS-232/Relay connector: 1 x M12 5-pole A-coded} _{Power Input connector : 1 x M12 4-pole T-coded (12V model); 1 x M12 4-pole A-coded (WV model)} _{DIDO : 1 x M12 5-pole A-coded}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Bypass Protection**}	_{High-speed optical switching (<4ms)} _{Minimal insertion loss (Max 1.6dB as Bypass Mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM (Green)} _{Ethernet port: Link/Activity (Green), PoE (Green);}
_DI/DO	_{2 Digital Input (DI) :} _{Level 0: -30~2V / Level 1: 10~30V} _{Max. input current:8mA} _{2 Digital Output(DO): Open collector to 40 VDC, 200mA}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~154°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Power Supply}	_{Dual 16.8~137.5VDC (WV model)} _{Dual 9.5~57VDC for 12V model}
_{PoE Budget}	_{WV model: 24V:60W / WV:80W} _{12V model: 24V:120W / 12V:80W}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/15W PoE af}
_{Power Consumption}	_{Without PoE: Max.13W} _{With PoE: Max. 18W}
_{Case Dimension}	_{IP65 model: Aluminum case} _{178mm(W)x99mm(H)x103mm(D)}
_Weight	_1.0kgs
_Installation	_{Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}
_{Stability Testing}	_{EN61373 (Shock and Vibration)}
_MTBF	_{229,174 hrs}
_{Verifications & report*}	_{EN50155/EN50121-3-2/EN50121-4 verification} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke verification}
_Warranty	_{5 years}

More Information

Description

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1s Multiple Spanning Tree} _{IEEE 802.3ad Link Aggregation Control Protocol (LACP)} _{IEEE 802.1AB Link Layer Discovery Protocol (LLDP)} _{IEEE 802.1X User Authentication (Radius)} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.3at/af Power over Ethernet}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 9.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Ethernet / Gigabit Fiber port}
_CPU	_{Marvell 800Mhz}
_{Mac Address}	_{16K MAC address table}
_{Jumbo frame}	_{10KB on all ports}
_Connectors	_{10/100TX: 8 x ports M12 4-pole D-coded with Auto MDI/MDI-X function} _{10/100/1000T: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function} _{RS-232/Relay connector: 1 x M12 5-pole A-coded} _{Power Input connector : 1 x M12 4-pole T-coded (12V model); 1 x M12 4-pole A-coded (WV model)} _{DIDO : 1 x M12 5-pole A-coded}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Bypass Protection**}	_{High-speed optical switching (<4ms)} _{Minimal insertion loss (Max 1.6dB as Bypass Mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM (Green)} _{Ethernet port: Link/Activity (Green), PoE (Green);}
_DI/DO	_{2 Digital Input (DI) :} _{Level 0: -30~2V / Level 1: 10~30V} _{Max. input current:8mA} _{2 Digital Output(DO): Open collector to 40 VDC, 200mA}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~154°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Power Supply}	_{Dual 16.8~137.5VDC (WV model)} _{Dual 9.5~57VDC for 12V model}
_{PoE Budget}	_{WV model: 24V:60W / WV:80W} _{12V model: 24V:120W / 12V:80W}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/15W PoE af}
_{Power Consumption}	_{Without PoE: Max.13W} _{With PoE: Max. 18W}
_{Case Dimension}	_{IP65 model: Aluminum case} _{178mm(W)x99mm(H)x103mm(D)}
_Weight	_1.0kgs
_Installation	_{Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}
_{Stability Testing}	_{EN61373 (Shock and Vibration)}
_MTBF	_{229,174 hrs}
_{Verifications & report*}	_{EN50155/EN50121-3-2/EN50121-4 verification} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke verification}
_Warranty	_{5 years}
