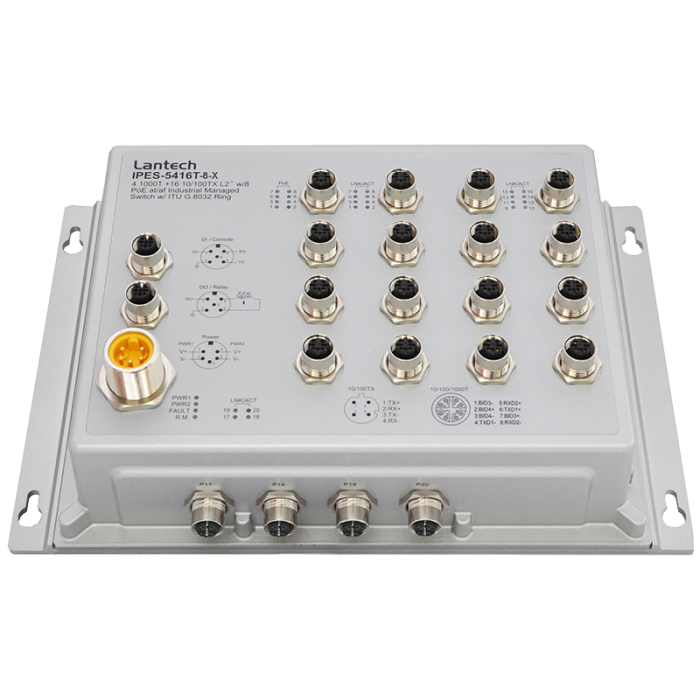

IPES-5416T-8-X - 20 port managed switch

- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W
- Support PTPv2 <1us, relay contact & environmental monitoring
- Optional 72V input steps down to 48V output for IEEE 802.3at/af max.80W

In stock

SKU
IPES-5416T-8-X

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPES-5416T-8-X - 20 port managed switch

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 11.2Gbps
Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connectors

10/100TX: 16 x ports M12 4-pole D-coded with Auto MDI/MDI-X function
10/100/1000T: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Bypass Protection**

High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green), Speed (Green); Optical fiber: Link/Activity (Green)

DI/DO

1 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
1 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F
(72V model: -40°C~60°C / -40°F~140°F)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

45~56VDC on standard model
9.5~56VDC on 12V model
50.4~90VDC on 72V model
43~160VDC on 110V model with input isolation

PoE Budget

240W for 45~56V input
(55V input is recommended for 802.3at 30W applications)
80W for 12V input
120W for 24V input
80W for 72V/110V Input

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Power Consumption

Max. 13W 12V~48VDC input
Max. 16W 72VDC/110VDC input

Case Dimension

IP67 Aluminum case
285mm(W)x200mm(H)x84.4mm(D)

Weight

2.1kgs

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,
CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

MTBF

217,019 hrs

Certifications& report

EN50155/EN50121-3-2/EN50121-4 Certificate
ISO 7637** report
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate

Safety

EN 60950-1 (Standard model and 110V model)

Warranty

5 years
