- Pro-Ring IIse for single ring self-recovery ring in 20ms - Support PoE Plus 802.3at/af ;120W PoE budget;9.5~56V PoE input (12V model) - PoE management incl. Detection, Delay and Scheduling
In stock
SKU
IPGS-2204DSFP
Have a Question about this product?
Description /

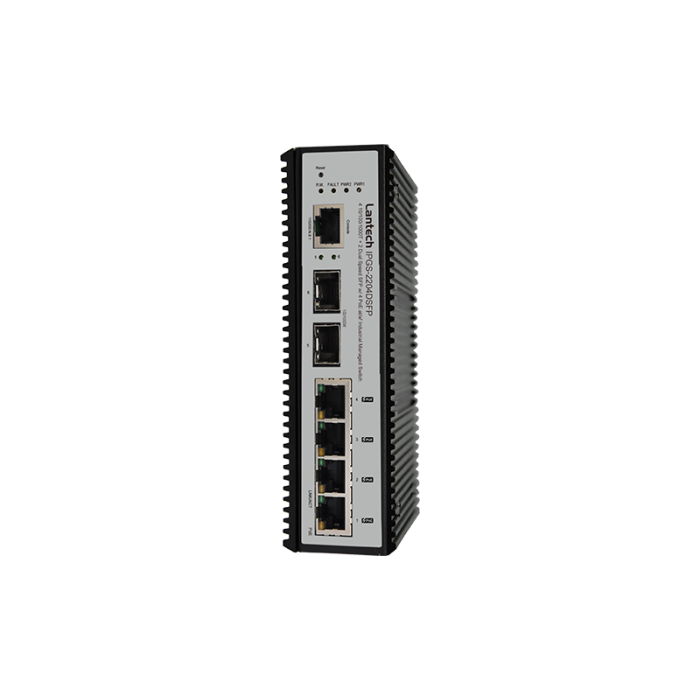

IPGS-2204DSFP - 6 port managed switch
IEEE Standards
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.3af /at Power over Ethernet IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.1x User Authentication (Radius) IEEE802.1ab LLDP
Switch Architecture
Back-plane (Switching Fabric): 12Gbps
Transfer Rate
14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
MAC Address
8K MAC address table
Connectors
10/100/1000T: 4 x ports RJ-45 with Auto MDI/MDI-X function 100/1000 SFP port: 2 100/1000 SFP socket with DDM*** RS-232 connector: RJ-45 type
1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
Protocol
CSMA/CD
PoE pin assignment
RJ-45 port # 1~#4 support 802.3at/af End-point, Alternative A mode. Per port provides up to 30W@54V capability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
PoE input voltage & Power feed voltage
Input V
Active Mode A /Output V
9.5V~56V
48V/54V@15W/30W(IPGS-2204DSFP-12V)
45~56V(af)
48V@15W
53~56V(at)
54V@30W
LED
Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow) SFP port: LNK/ACT(Green)
Power Supply
PoE input 48V/54VDC; 9.5V~56V(IPGS-2204DSFP-12V); Dual power connective removable terminal block
PoE Budget
80W for 12V input, 120W for 24V and 48V/54V input
Overload current protection
Present
Operating Humidity
5% ~ 95% (Non-condensing)
Operating Temperature
Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature for E models: -40°C~75°C / -40°F~167°F
Storage Temperature
-40°C~85°C / -40°F~185°F
Case Dimension
IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm
Weight
660 g
Fan Number
0
Installation
Wall mount or DIN-type cabinet install
EMI & EMS
FCC Class A, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4
9.86 W (no PoE load) for Ethernet data at full load
Warranty
5 years
More Information
Description
IEEE Standards
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.3af /at Power over Ethernet IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.1x User Authentication (Radius) IEEE802.1ab LLDP
Switch Architecture
Back-plane (Switching Fabric): 12Gbps
Transfer Rate
14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
MAC Address
8K MAC address table
Connectors
10/100/1000T: 4 x ports RJ-45 with Auto MDI/MDI-X function 100/1000 SFP port: 2 100/1000 SFP socket with DDM*** RS-232 connector: RJ-45 type
1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
Protocol
CSMA/CD
PoE pin assignment
RJ-45 port # 1~#4 support 802.3at/af End-point, Alternative A mode. Per port provides up to 30W@54V capability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
PoE input voltage & Power feed voltage
Input V
Active Mode A /Output V
9.5V~56V
48V/54V@15W/30W(IPGS-2204DSFP-12V)
45~56V(af)
48V@15W
53~56V(at)
54V@30W
LED
Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow) SFP port: LNK/ACT(Green)
Power Supply
PoE input 48V/54VDC; 9.5V~56V(IPGS-2204DSFP-12V); Dual power connective removable terminal block
PoE Budget
80W for 12V input, 120W for 24V and 48V/54V input
Overload current protection
Present
Operating Humidity
5% ~ 95% (Non-condensing)
Operating Temperature
Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature for E models: -40°C~75°C / -40°F~167°F
Storage Temperature
-40°C~85°C / -40°F~185°F
Case Dimension
IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm
Weight
660 g
Fan Number
0
Installation
Wall mount or DIN-type cabinet install
EMI & EMS
FCC Class A, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4
