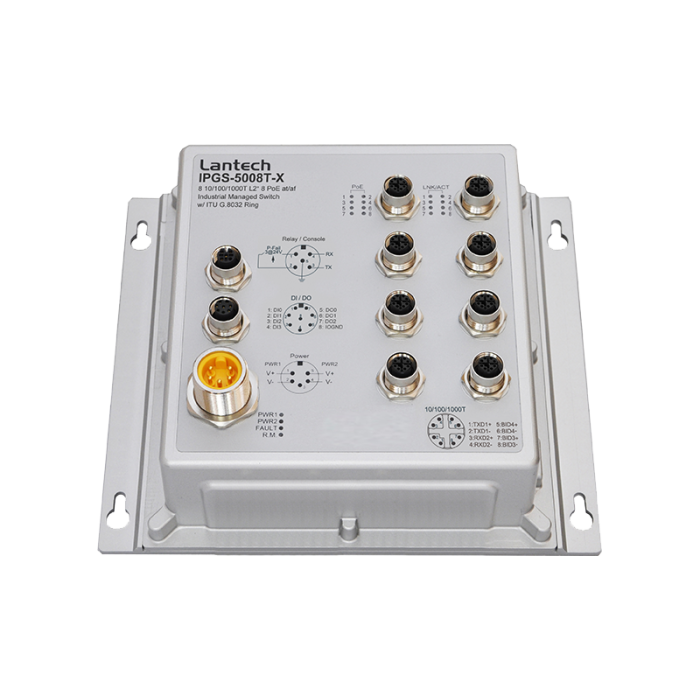

IPGS-5008T-X - 8 port managed switch

- EN50155/61373/45545-2 certified; 24~110V (WV) input selection
- IEEE802.3at/af up to 15W per port; PoE management incl. detection and scheduling
- IP 67 / IP54 Aluminum housing for best heat dissipation and preventing moist ingress

In stock

SKU
IPGS-5008T-X

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IPGS-5008T-X - 8 port managed switch

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 16Gbps
Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connectors

10/100/1000T: 8 x ports M12 8-pole X-coded with Auto MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Bypass Protection**

High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green)

DI/DO

4 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
3 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

16.8~137.5VDC for PoE feeding & data on WV model

Power Consumption

Max. 25W

PoE Budget

80W for WV input

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 15W class 0-4.

Case Dimension

IP67 model: Aluminum case
215mm(W)x200mm(H)x84.4mm(D)
IP54 model: Aluminum case
180mm(W)x165mm(H)x82mm(D)

Weight

1.4kgs(IP67); 980gs (IP54)

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,
CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

Certifications& report

EN50155/EN50121-3-2/EN50121-4 Certificate
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate

Warranty

5 years
