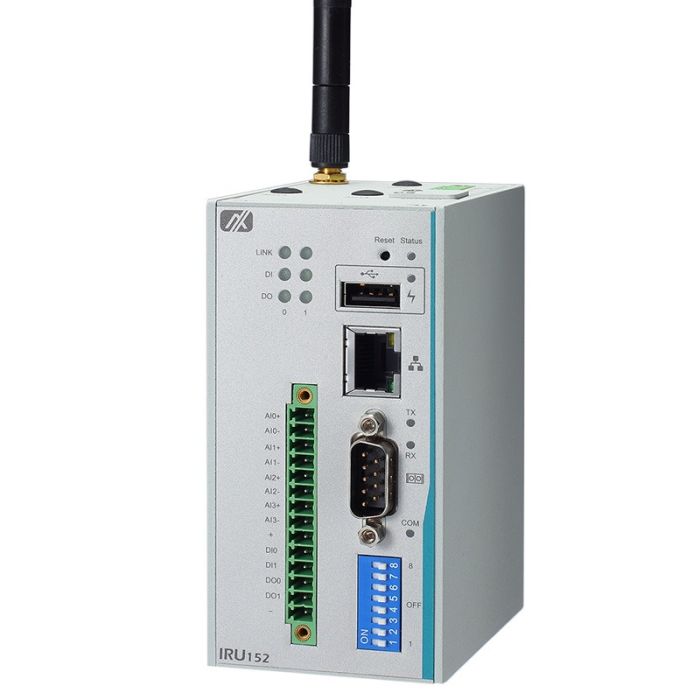

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA) and 2 PCIe Mini Card Slots

In stock

SKU: IRU152-I

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IRU152-I - i.MX 6UL, embedded Linux O/S

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA) and 2 PCIe Mini Card Slots

· RISC-based (i.MX 6UltraLite) processor 528 MHz

· 512MB DDR3 SDRAM onboard

· 8GB eMMC flash onboard

· 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)

· 4 isolated analog input channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA)

· 1 isolated COM port

· 1 isolated DIO (2-in/2-out)

· Embedded Linux operating system (Yocto)

· Wide operating temperature range from -40°C to +70°C

· Supports LabVIEW versions later than 2016

· Supports OPC UA

More Information

Brand

Axiomtek

Specifications

CPU	NXP i.MX 6 UL processor, ARMR CortexR-A7 @ 528 MHz
Chipset	SoC integrated
System Memory	1 x DDR3-1600 onboard, 512 MB
COM	1 x RS-232/422/485 Magnetic isolation protection 2KV
USB	1 x USB 2.0 (type A)
Ethernet	1 x 10/100 Mbps Ethernet Magnetic isolation protection 1.5KV
PoE	N/A
CANbus	N/A
Digital I/O	1 x DIO (2-in/2-out) with isolation 2KV
Analog Input	4 x AI (isolation) Channels: 4 (Differential) Input impedance: 249Ω Input range: 0 - 20mA, ±20mA Resolution:16-bit Sampling rate: 10 S/s to 250 kS/s FIFO buffer size: 2,048 samples Over voltage protection: ±55V Trigger source: analog or digital (software selectable)
Display	N/A
Wireless	2 x PCI Express Mini Card slot (only USB signal) 1 x SIM Card socket
Storage	1 x eMMC 8GB flash onboard
Others	1 x EEPPROM (2 Kb) Console/COM switch ID setting 0 to 255
Power Supply	9 to 48 VDC power input range
Watchdog Timer	0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95%
Vibration	2 Gms @ (10 to 150Hz sine wave; operation)
Dimensions (W x D x H)	55 x 82 x 108 mm (2.16" x 3.23" x 4.25")
Weight (net/gross)	0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
Certifications	FCC part 15, Heavy Industrial CE
EOS Support	Linux Kernel 3.14.52 Yocto FIDO 1.8
Mounting	DIN-rail

Description

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA) and 2 PCIe Mini Card Slots

· RISC-based (i.MX 6UltraLite) processor 528 MHz

· 512MB DDR3 SDRAM onboard

· 8GB eMMC flash onboard

· 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)

· 4 isolated analog input channels (16-bit, 250 kS/s, 0 - 20mA, ±20mA)

· 1 isolated COM port

· 1 isolated DIO (2-in/2-out)

· Embedded Linux operating system (Yocto)

· Wide operating temperature range from -40°C to +70°C

· Supports LabVIEW versions later than 2016

· Supports OPC UA
