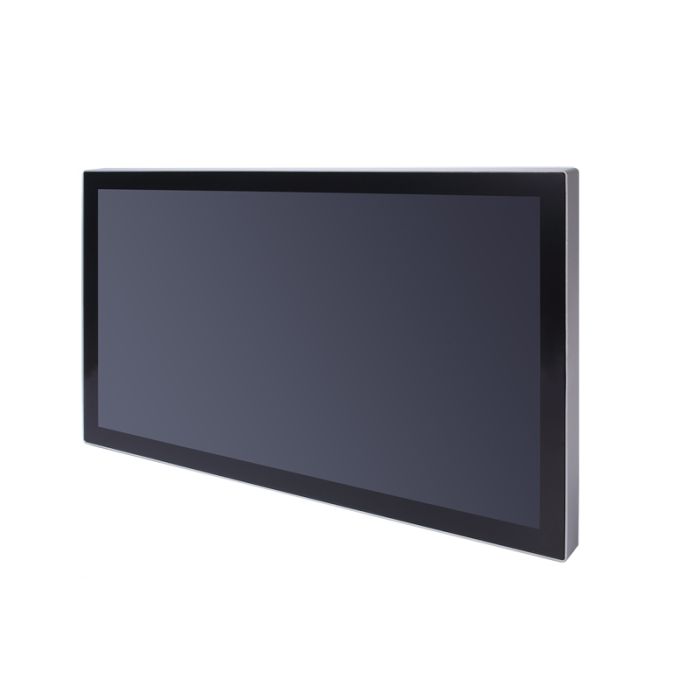

ITC210WM 21.5" Panel PC with SDM Module
21.5" FHD TFT-LCD Slim Bezel Modular Panel PC Powered by Intel® Smart Display Module
(SDM) CPU Card
In stock
- SKU
- ITC210-xxxx
Have a Question about this product?
Description / ITC210WM 21.5" Panel PC with SDM Module
· 21.5" full HD TFT-LCD
· Aspect ratio: 16:9; brightness: 250 nits
· Slim bezel shape under 48.5 mm thickness
· Projected capacity touch supported, 10-point touch
· Swappable CPU card design
· Supports Intel® SDM CPU card
· Metal frame structure for various application
· Supports add-on modules and mounting kits (optional)
More Information
| Brand | Axiomtek |
|---|---|
| Specifications | Front Bezel IP54, metallic front bezel LCD Panel Main System Display Type 21.5" FHD TFT-LCD Brightness (cd/m2) 250 nits 16:9 Intel® SDM Small (SDM-S, 60 x 100 mm) Intel® SDM Large (SDM-L, 175 x 100 mm) 1 x Power button with LED 1 x HDMI output 1 x USB 3.0 Type A 2 x USB 2.0 Type A 1 x microSD card slot (push-push type) 2 x 12 VDC-in barrel (screw-lock type) 1 x GbE LAN 2 x USB 3.0 Type A 2 x SMA antenna reserved hole Resolution Aspect Ratio 1920 (H) x 1080 (V) CPU Quad cores Intel® Pentium® N4200 1.1GHz processor or Dual cores Intel® Celeron® N3350 1.1GHz processor (depends on CPU Card) System Memory Onboard LPDDR4 2400 MHz 4GB (8GB optional) BIOS AMI UEFI BIOS Storage 1 x eMMC 64GB onboard Watchdog Timer 255 levels, 0 to 255 sec. |
| Description | · 21.5" full HD TFT-LCD · Aspect ratio: 16:9; brightness: 250 nits · Slim bezel shape under 48.5 mm thickness · Projected capacity touch supported, 10-point touch · Swappable CPU card design · Supports Intel® SDM CPU card · Metal frame structure for various application · Supports add-on modules and mounting kits (optional) |
