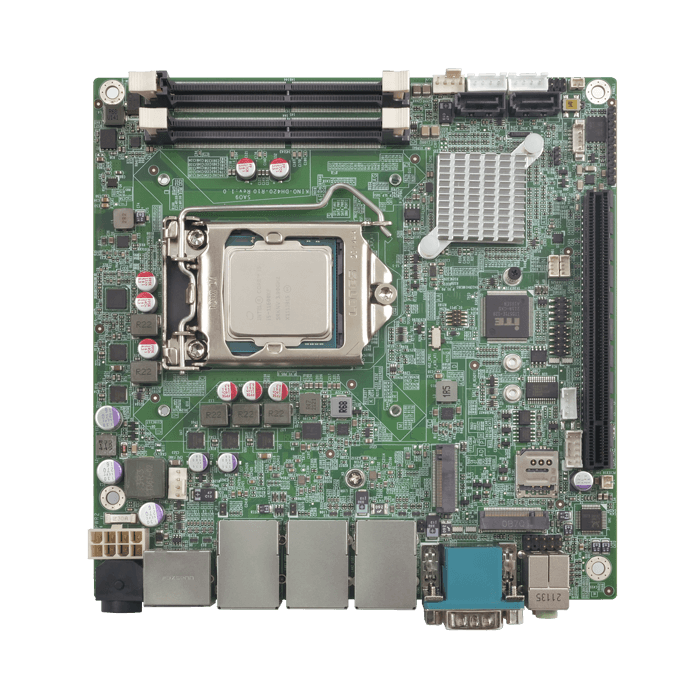

KINO-DH420 Mini-ITX SBC 10th Gen CPU

IEI Integration Corp.

Mini-ITX SBC LGA1200 Intel 10th Generation Core i9/i7/i5/i3/Pentium/Celeron, DDR4, dual displays, 3x2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

In stock

SKU
KINO-DH420-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / KINO-DH420 Mini-ITX SBC 10th Gen CPU

Mini-ITX SBC that supports LGA1200 Intel 10th Generation Core i9/i7/i5/i3/ Pentium/Celeron processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS.

Key Features:

  • LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
  • Triple Intel 2.5Gb Ethernet controller
  • HDMI, DP and display output
  • Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion

More Information

brand IEI Integration Corp.
Specifications

Hardware Spec.

Form Factor
Form Factor Mini-ITX Motherboard
System
CPU LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
Chipset Intel H420E
Memory Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight 400g
Storage
Storage 2 x SATA : 6Gb/s (no RAID)
  1 x M.2(NGFF) : B key (support NVME storage)
I/O Interface
Display Output 1 x HDMI up to 4096 x 2160 @30Hz
  1 x Display Port up to 4096 x 2304 @60Hz
Ethernet 3 x LAN -
LAN1: Intel® i225LM GbE controller (colay i225v)
LAN2: Intel® i225v GbE controller (colay i225LM)
LAN3: Intel® i225v GbE controller (colay i225LM)
Audio 1 x Line out
  1 x Mic
  1 x Front Audio : 2x5 pin
  1 x HD Audio : Realtek ALC888S HD codec
I/O Interface 2 x External RS-232
  1 x Internal RS-232 : 2x5 pin, P=2.00
  1 x Internal RS-422/485 : RS-485 support AFC
  2 x External USB 2.0 : Type-A
  4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
  2 x Internal USB 2.0 : 2x4 pin, P=2.00
  1 x DIO : 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16
  2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0)
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 12V@12.408A (Intel® Core™ i7-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled)
Power Supply DC 12V input
1 x ATX power connector (2x4 pin)
1 x DIN 4-pin DC Jack
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DH420-R10 Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x KINO-DH420 single board computer

  • 1 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
Description

Mini-ITX SBC that supports LGA1200 Intel 10th Generation Core i9/i7/i5/i3/ Pentium/Celeron processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS.

Key Features:

  • LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
  • Triple Intel 2.5Gb Ethernet controller
  • HDMI, DP and display output
  • Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion
