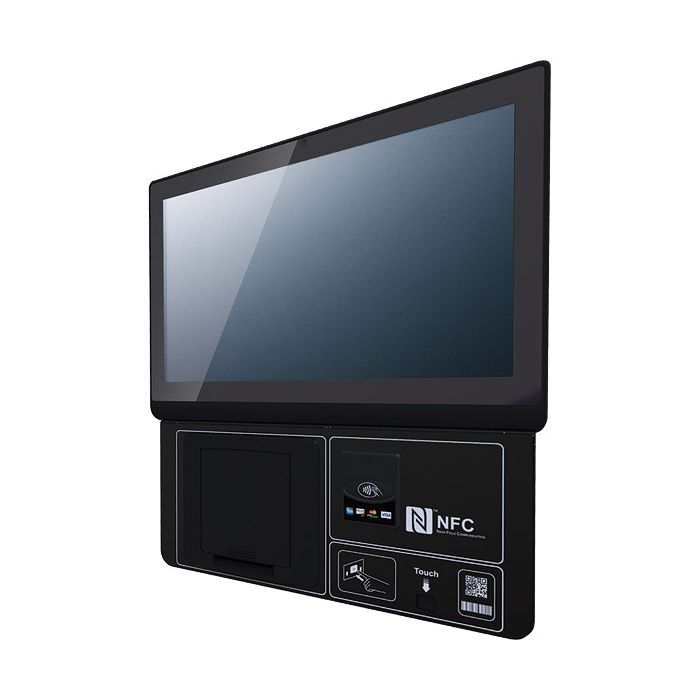

KPPC 1812 18.5" WXGA Kiosk-Style Panel PC
18.5" Kiosk Panel PC, Quad core Intel® Celeron® processor J1900 2GHz
In stock
- SKU
- KPPC 1812
Have a Question about this product?
Description / KPPC 1812 18.5" WXGA Kiosk-Style Panel PC
Quad core Intel® Celeron® processor J1900 2GHz
18.5" WXGA (1366x768) P-cap zero bezel touch display
2MP front webcam with autofocus
4GB of DDR3L SO-DIMM memory
320GB 5,400rpm 2.5" HDD
Ultra slim 64.5mm VESA mounting (100x100mm)
24VDC 120W Power brick
More Information
| Brand | Nexcom |
|---|---|
| Specifications | System Processor Motherboard: NP-BYT0-A / NC-DK0-A Processor: Intel® Celeron® J1900 Processor, 4C, 2.0 GHz, 2MB Cache System Memory: - 1 x DDR3L 1333 SO-DIMM - Default: 1 x SO-DIMM DDR3L 1333 4GB - Optional: 1 x SO-DIMM DDR3L 1333 8GB Graphics: Integrated graphics controller, Intel's Gen 7 graphics and media encode/decode engine LCD Touch Screen LCD Size: 18.5" TFT WXGA (1366x768) 250cd/m² LCD panel Touch Screen: 18.5" Projected Capacitive Touch Panel Storage Device 1 x 2.5" SATA HDD 320GB 5,400rpm w/ HDD Door Expansion 1 x Full size Mini-Card slot (mini-PCIe/USB/3G SIM slot) 1 x Half size Mini-Card slot (mini-PCIe/USB) Rear I/O Serial (4): USB (2/2): 2 x USB 2.0; 2 x USB 3.0 Parallel: 1 x DB-25 Parallel Port LAN: 1 x RJ-45 (10/100/1000Mbps Ethernet) VGA: 1 x DB-15 VGA port for 2nd Display Cash Drawer Port: 1 x RJ-11, support Two Cash Drawers (24V, Max 1.1A) DC-in Jack: 1 x DC-24V Input DC-Out Jack: 1 x DC-12V Output for 2nd Display Power (12V, Max 3.0A) Line-Oout/Mic: 1 x Line-out for External Audio Speaker & Mic-in Audio 1 x System Buzzer System Control 1 x Power ON/OFF Switch Power Default: External AC DC 24V/5.0A 120W Power Brick Optional: Upgrade to DC-24V 180W Power Brick Kits/Peripherals Web Camera: Default: build-in 2M Auto Focus Web CAM, USB interface MSR: Optional: ISO 3 Tracks MSR (USB/RS232 combo interface or PS/2) MSR/ Fingerprint Combo: Optional: ISO 3 Tracks MSR (PS/2) & Fingerprint (USB) combo RFID/ NFC: Optional: RFID Mifare Read/ Write Module; NFC Contactless Reader Module Scanner: Optional: 2D Scanner Thermal Printer: Optional: 2"/3" Thermal Printer Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity: 20% - 80% RH non-condensing Storage Humidity: 20% - 85% RH non-condensing Dimension Display Head: 461.6mm (W) x 309.8mm (H) x 64.5mm (D) Package Size: 585mm (L) x 235mm (W) x 450mm (H) (No MSR) Weight Net Weight/Gross Weight: 9.0kg (19.8lbs) / 10.5kg (23.2lbs) Operating System Windows 8 WES 8 POSReady 7 Win 7 Pro WES 7 Fedora 17 TIZEN Certificate EMC & Safety FCC/CE/LVDS |
| Description | Quad core Intel® Celeron® processor J1900 2GHz 18.5" WXGA (1366x768) P-cap zero bezel touch display 2MP front webcam with autofocus 4GB of DDR3L SO-DIMM memory 320GB 5,400rpm 2.5" HDD Ultra slim 64.5mm VESA mounting (100x100mm) 24VDC 120W Power brick |
