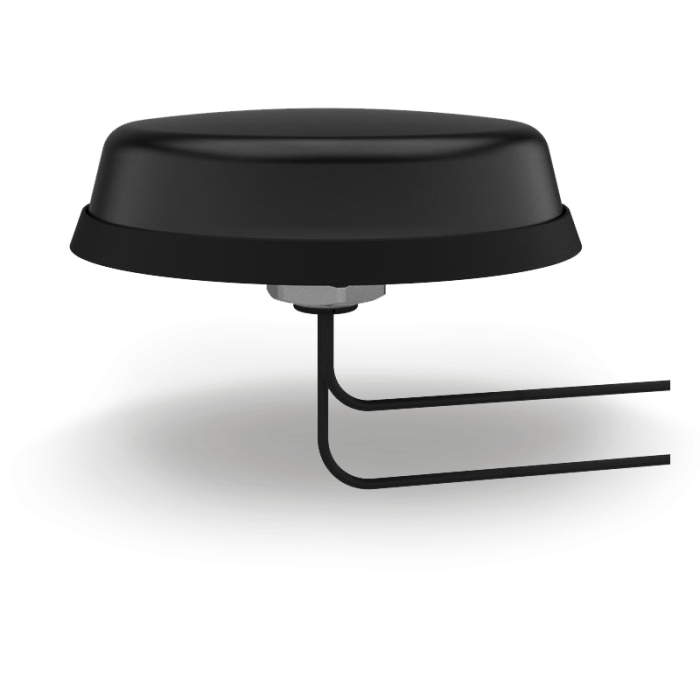

LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna

Panorama Antennas

Panorama LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna IP69K 4G/LTE 2x2 MiMo

Key Features:

  • Offers ultra-low-profile MiMo 4G/LTE coverage.
  • Weatherproof housing contains two antenna elements with effective isolation.
  • Designed for panel mounting, it provides plug-and-play connectivity with various routers and modems.
  • Integrated flame retardant RG174 cables and SMA plug connectors.
  • Supplied in black flame retardant LEXAN EXL9330 plastic as standard.

In stock

SKU
LPM2-7-27

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna

The LPM2-7-27 range is created to deliver MiMo 4G/LTE coverage with an extremely low-profile design. It comes in a compact and sturdy weatherproof housing that houses two antenna elements with effective isolation and a low correlation coefficient, spanning 698-960/1427-2700MHz frequencies.

This panel-mounted antenna is supplied with integrated flame retardant RG174 cables (UN ECE 118.03 compliant) and SMA plug connectors, ensuring easy plug-and-play connectivity with various routers and modems. The standard model is made from black flame retardant LEXAN EXL9330 plastic.

It is important to install the antenna on a non-conductive ground plane, as its performance will be adversely affected if mounted on a metallic or conductive surface.

Key Features:

  • Offers ultra-low-profile MiMo 4G/LTE coverage.
  • Weatherproof housing contains two antenna elements with effective isolation.
  • Designed for panel mounting, it provides plug-and-play connectivity with various routers and modems.
  • Integrated flame retardant RG174 cables and SMA plug connectors.
  • Supplied in black flame retardant LEXAN EXL9330 plastic as standard.

More Information

brand Panorama Antennas
Specifications
Electrical Data
4G LTE Elements (MiMo) 2x2
Frequency Range (MHz) 698-960/1427-2700
Typical VSWR* <2.5:1
Typical Isolation* >15dB
Pattern Omni-directional
Nominal Impedance 50Ω
Max input power (W) 5
Mechanical Data
Dimensions (mm)
Diameter 123 (4.84”)
Height 32 (1.25”)
Operating Temp (°C) -40° / +80°C (-40° / 176°F)
Material LEXAN EXL 9330 Plastic
Colour Black
Typical Weight (g) 225
Ingress Protection** IP69K
Vandal Protection IK10
Mounting Data
Fixing Panel Mount - 18mm (3/4”)
Cable Data
4G / LTE
Cable Type RG174 FR (meets UN ECE R118.03)
Diameter (mm) 2.8 (0.1”)
Length (m) 2(6.5’)
Termination 2x SMA (m)
Description

The LPM2-7-27 range is created to deliver MiMo 4G/LTE coverage with an extremely low-profile design. It comes in a compact and sturdy weatherproof housing that houses two antenna elements with effective isolation and a low correlation coefficient, spanning 698-960/1427-2700MHz frequencies.

This panel-mounted antenna is supplied with integrated flame retardant RG174 cables (UN ECE 118.03 compliant) and SMA plug connectors, ensuring easy plug-and-play connectivity with various routers and modems. The standard model is made from black flame retardant LEXAN EXL9330 plastic.

It is important to install the antenna on a non-conductive ground plane, as its performance will be adversely affected if mounted on a metallic or conductive surface.

Key Features:

  • Offers ultra-low-profile MiMo 4G/LTE coverage.
  • Weatherproof housing contains two antenna elements with effective isolation.
  • Designed for panel mounting, it provides plug-and-play connectivity with various routers and modems.
  • Integrated flame retardant RG174 cables and SMA plug connectors.
  • Supplied in black flame retardant LEXAN EXL9330 plastic as standard.
