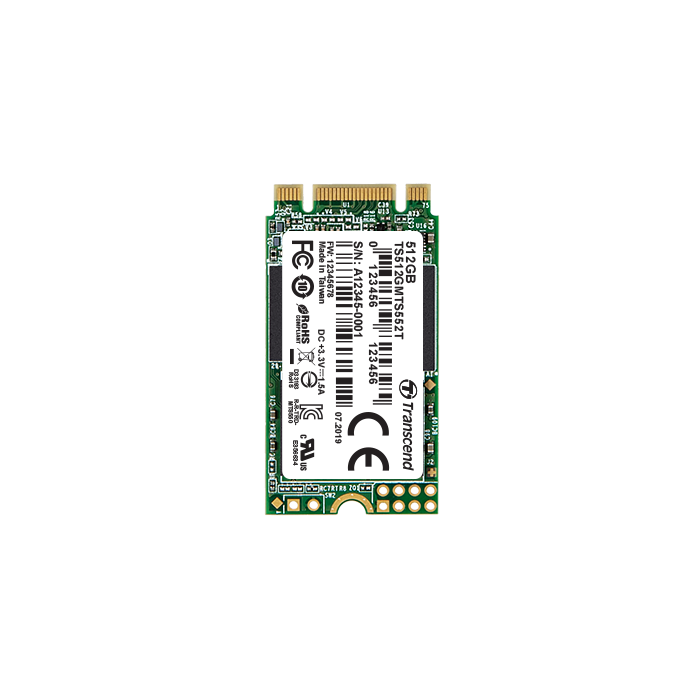

M.2 SSD MTS552T

Industrial SATA III M.2 SSD



64~512GB TLC Flash

Std and Wide temp

In stock

SKU
MTS552T & MTS552T -I

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / M.2 SSD MTS552T

  • DRAM Cache embedded
  • Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Wide-temperature model available: promised operational reliability in a wide temperature range (from -40℃ to 85℃)
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Enhanced S.M.A.R.T. function for durability
  • Compliant with RoHS 2.0 standards
  • Supports Trim and NCQ command
  • Power-saving DevSleep (Device Sleep) mode (optional)

More Information

Specifications

Appearance
Dimensions 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight 5 g (0.18 oz)
Form Factor
  • M.2
M.2 Type
  • 2242-D2-B-M

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Flash Type
  • 3D TLC NAND flash
Capacity
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB

Operating Environment
Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard
    0°C (32°F) ~ 70°C (158°F)
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 2.17 G (peak-to-peak), 10 Hz ~ 700 Hz (frequency)

Power
Power Consumption (Operation) 1.6 watt(s)
Power Consumption (Sleep) 0.3 watt(s)

Performance
Sequential Read/Write (CrystalDiskMark, max.) Read: 560 MB/s
Write: 410 MB/s
4K Random Read/Write (IOmeter, max.) Read: 55,000 IOPS
Write: 75,000 IOPS
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Terabytes Written (Max.) 880 TB
Drive Writes Per Day (DWPD) 1.61 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Warranty
Certificate
  • CE/
  • FCC/
  • BSMI
Warranty
  • Three-year Limited Warranty
Warranty Policy
  • Please check https://au.transcend-info.com/Warranty for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
  • Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
  • SSD Scope Pro software is required by request. Please contact us for more information.
Description
  • DRAM Cache embedded
  • Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Wide-temperature model available: promised operational reliability in a wide temperature range (from -40℃ to 85℃)
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Enhanced S.M.A.R.T. function for durability
  • Compliant with RoHS 2.0 standards
  • Supports Trim and NCQ command
  • Power-saving DevSleep (Device Sleep) mode (optional)
