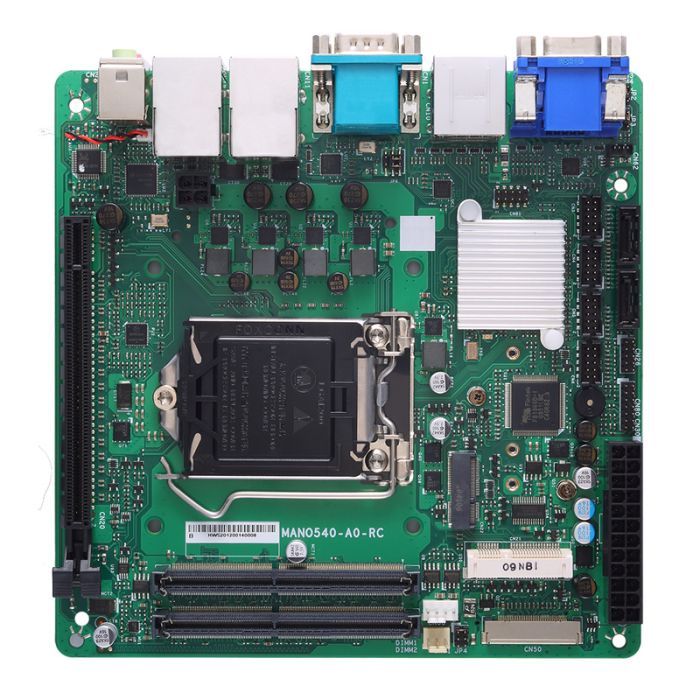

MANO540 Mini-ITX SBC 10th Gen i9/i7/i5/i3

Axiomtek

10th Gen Core™ i9/i7/i5/i3 DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN

In stock

SKU
MANO540-H-x

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MANO540 Mini-ITX SBC 10th Gen i9/i7/i5/i3

MANO540 is a mini-ITX motherboard powered by 10th Gen Intel® Core™ i9/i7/i5/i3 processor (codename: Comet Lake) with the Intel® H410 chipset. Contained in a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for operation within space-constrained environments including ndustrial automation, self-service kiosks, and other infotainment driven solutions.

  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H410 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 6 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 2 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module

More Information

brand Axiomtek
Specifications
CPU
  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® H410
System Memory
  • 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 1 x RS-232
USB
  • 2 x USB 3.2 Gen1
  • 5 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM)
Display
  • 1 x DisplayPort++
  • 1 x HDMI 2.0
  • 1 x eDP
  • 1 x VGA
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x M.2 Key B 2242/2280/3042/3052 (optional)
  • 2 x SATA-600
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B
  • 1 x M.2 Key E 2230
  • 1 x mini-PCIe
Others
  • Onboard TPM 2.0 (optional)
Battery
  • Lithium 3V/220mAH
Power Input
  • Standard 12V ATX power
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Description

MANO540 is a mini-ITX motherboard powered by 10th Gen Intel® Core™ i9/i7/i5/i3 processor (codename: Comet Lake) with the Intel® H410 chipset. Contained in a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for operation within space-constrained environments including ndustrial automation, self-service kiosks, and other infotainment driven solutions.

  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H410 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 6 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 2 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module
