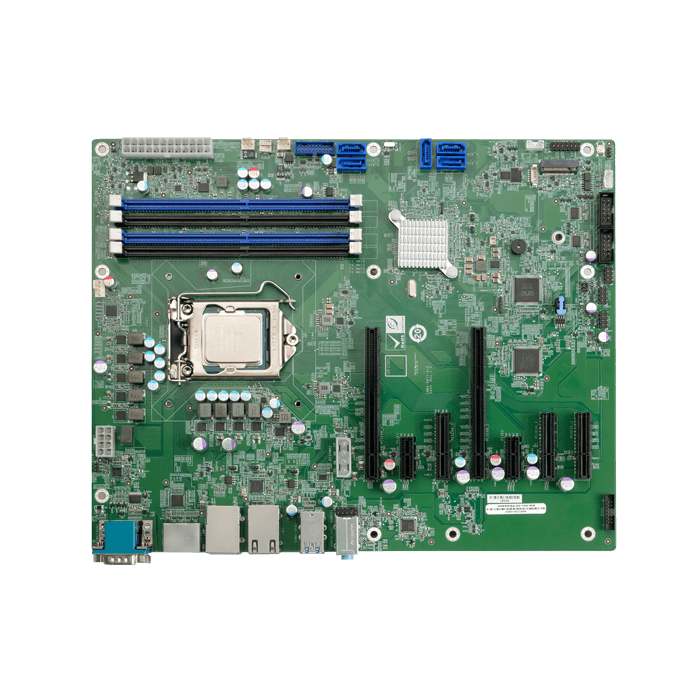

IMBA-Q471 ATX Motherboard LGA1200 Intel 10th Gen Core/Cele/Pent

IEI Integration Corp.

ATX industrial motherboard supporting 10th/11th Intel Core i9/i7/i5/i3, Celeron, Pentium processors

In stock

SKU
IMBA-Q471-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IMBA-Q471 ATX Motherboard LGA1200 Intel 10th Gen Core/Cele/Pent

ATX MB supports LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Key Features:

  • Support HDMI, DP, VGA triple independent display output
  • Support triple Intel i225V 2.5GbE controller
  • Support 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
  • Support 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
  • Support 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector

More Information

brand IEI Integration Corp.
Specifications
System
CPU 10th/11th Generation LGA1200 Intel Core i9/i7/i5/i3, Celeron and Pentium processors
Chipset Intel® Q470/Q470E
Memory Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots, supporting up to 128 GB of memory
Memory Max. up to 128 GB memory
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Storage
Storage 1 x M.2(NGFF): M-key 2242/2280 (PCIe Gen3 x2, SATA)
  5 x SATA: 6Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x Display Port: up to 4096 x 2304 @ 60 Hz
  1 x HDMI: up to 4096 x 2304 @ 30 Hz
  1 x VGA: up to 1920 x 1080 @ 60 Hz
Ethernet 3 x LAN-
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
LAN3: Intel® I225V 2.5GbE controller
Audio 1 x Front Audio: 2x5 pin, p=2.54
  1 x HD Audio: Realtek ALC888S HD Audio codec supports 7.1-channel
  1 x Line-in(CD/DVD or other audio source input port)
  1 x Line-out(connect this port to headphone or speaker)
  1 x Mic(connect this port to microphone)
I/O Interface 1 x DIO: 12-bit digital I/O (2x7 pin, p=2.0)
  1 x External RS-232: DB-9
  2 x External USB 2.0: Type-A
  2 x External USB 3.2 Gen1x1: 5Gb/s (Type-A)
  2 x External USB 3.2 Gen2x1: 10Gb/s (Type-A)
  2 x Internal RS-232: 2x5 pin, p=2.54
  1 x Internal RS-422/485: 1x4 pin, p=2.0
  6 x Internal USB 2.0: 2x4 pin, p=2.54
  2 x Internal USB 3.2 Gen1x1: 2x10 pin, p=2.0
Expansion 1 x M.2(NGFF): M-key 2242/2280 (PCIe x2, SATA)
  2 x PCIe x1
  2 x PCIe x16(x8 signal)
  3 x PCIe x4
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 3.3V@1.1A, 5V@3.359A, 12V@2.18A, 5VSB@0.12A
(Intel® Core™ i5-10500TE CPU with four 8 GB 2933 MHz DDR4
DIMMs)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP compliant
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C

Ordering Information

IMBA-Q471-R10 ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots，M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMBA-Q471 single-board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
Description

ATX MB supports LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Key Features:

  • Support HDMI, DP, VGA triple independent display output
  • Support triple Intel i225V 2.5GbE controller
  • Support 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
  • Support 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
  • Support 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector
