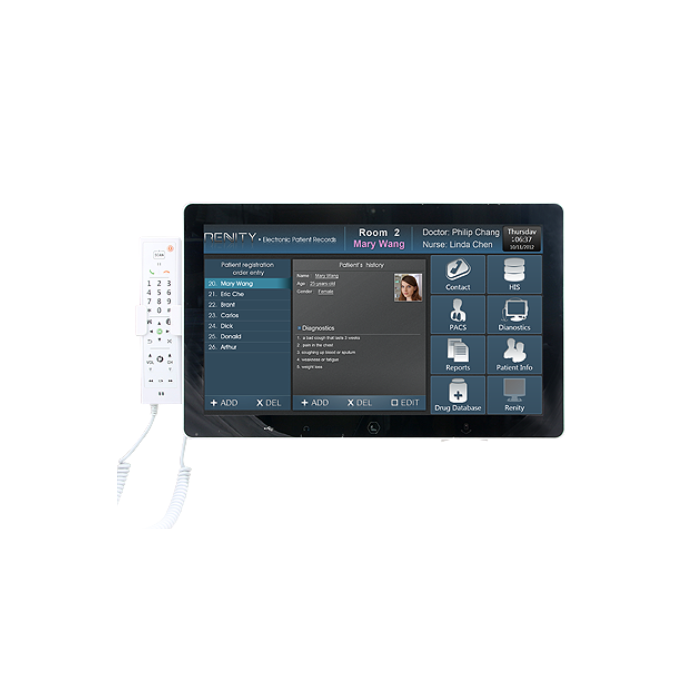

Medi-View-185 Touch Panel PC

Avalue Technology Inc

Remedi 18.5" Intel® ATOM™ Z3735F Processor Medical Touch Panel PC

In stock

SKU
R-V8xN-BD02D511240

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / Medi-View-185 Touch Panel PC

Onboard Intel® Atom™ Processor Z3735F, Ultra Slim modern aesthetic design, High resolution CCD camera, Fanless low power platformIP-65 on Front Panel Protection, VOIP Handset, Antibacterial casing materials, Phone Cradle and on/off hook Sensor

More Information

brand Avalue Technology Inc
Specifications
System
Processor Intel® Atom™ Processor Z3735F
System Memory 2GB DDR3L RAM
Storage
Storage 32GB eMMC
Panel
LCD Size 18.5
Display Type HD
Resolution 1366x768
Pixel pitch 0.3(H) x 0.3(V) mm
Luminance 300 cd/m2
Contrast ratio 700~ 1000
Viewing angle Horizontal 150 ~170; Vertical 140 ~160
Response time TR 2.5 -2.5ms; TF 3.5-5.5ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 88% +/1 3%
Touch Controller Control Board EETI
I/O
USB 3 x USB2.0
1 x Mcro USB Client (Andriod)
Other 2 x Stero Phone Jack
1 x Digital Mic
RFID/SCR module
onboard Wifi
Multimedia Handset (without Barcode Scanner)
Audio
Chipset Realtek ALC5645
Audio Interface Mic-in and Line-out
Speaker Output 2 x 3W Speaker
Ethernet
Chipset Microchip LAN9512 10/100MB Ethernet
Ethernet Interface 10/100 Base-Tx GbE compatible
LAN Port 1 x RJ45
Mechanical & Environmental
Power Type ATX
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing
Weight 3.75 kgs
Mounting Kit Hinge Mount / VESA 75 mm x 75mm
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan Fanless
Construction - Front White Plastic
Construction - Rear White Plastic
Finishing Anti-microbial
Dimension 463.95 x289.95 x 68.83 mm
Certifications
Certification Information CE CLASS A
FCC Part 15, CLASS A
UL/IEC/EN60601-1 3rd Edition
Software Support
OS Information Android 4.4
Power Requirement
Power Connector DC Jack
Power Requirement 12V ~ 24V Input
Adapter Input:100~ 240 Vac/50~ 60Hz; Output 90W Adapter (19V/4.73A)


Description

Onboard Intel® Atom™ Processor Z3735F, Ultra Slim modern aesthetic design, High resolution CCD camera, Fanless low power platformIP-65 on Front Panel Protection, VOIP Handset, Antibacterial casing materials, Phone Cradle and on/off hook Sensor
