The 'Megalodon' 8 x 4G/5G Low Profile Antenna

Panorama Antennas

Industry Leading 8x8 MiMo 4G/5G Dome Combination Antenna Range

Key Features:

  • 8x 4G/5G Elements
  • Up to 8×8 MiMo Dual Band WiFi 6e / 7
  • Up to 2 GPS/GNSS L1 or L1/L5 bands
  • Meets IK10 and IP69K
  • UN ECE R118 compliant cable
  • Low Height

In stock

SKU
L[X]M[X]M8[X]-6-60

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

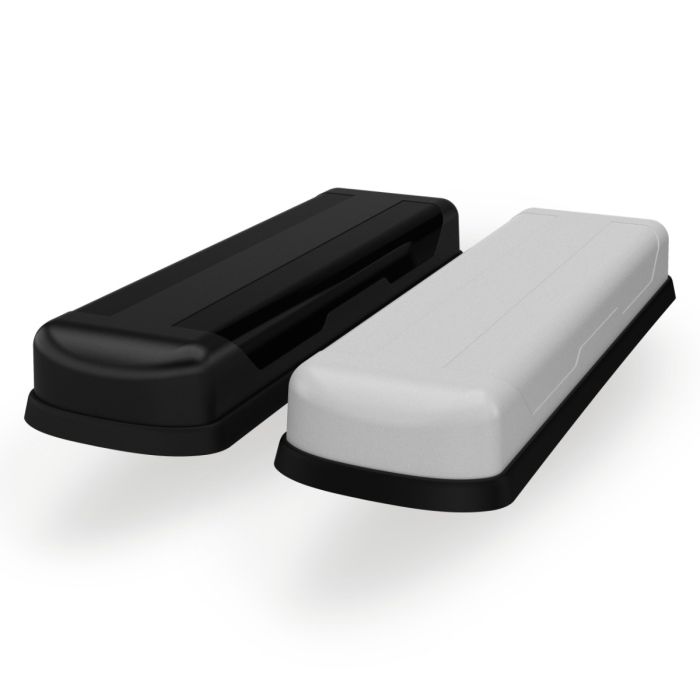

Description / The 'Megalodon' 8 x 4G/5G Low Profile Antenna

The industry-leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low-profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with several other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame-retardant low-loss CS30 cables (Compliant with UN ECE R118) and a halogen-free, flame-retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies.  This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.



More Information

brand Panorama Antennas
Specifications

ELECTRICAL DATA

Pattern

Omnidirectional

Max Input Power(W)

50

Typical VSWR

<3:1

Frequency Range | Gain

Check the part number table

Cellular LTE Elements

8×8 – 2x 4×4 MiMo

WIFI Elements

No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 8×8 MiMo

UHF Elements

No

GPS DATA

GPS Frequency Range

1559-1612MHz; 1164-1189MHz/1559-1612MHZ

LNA GAIN (dB)

26dB; 30dB / 26dB; 30 / 26dB

Number of GPS Elements

No; 1 Module; 2 Modules

MECHANICAL DATA

Colour

White; Black

Length

437 (mm) | 17.20 (in)

Width

133 (mm) | 5.24 (in)

Height

max: 56 (mm) | 2.2 (in)

Operating Temperature

-40°/ +80°C (-40.0°/ +176.0°F)

CABLE DATA

Cable Length – LTE

min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)

Cable length – GPS

min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)

Cable Length – WIFI

min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)

Cable Type (LTE)

CS30; FR CS32

Cable Type (GPS)

FR RG174; FR CS29

Cable Type (WIFI)

CS30; FR CS32

Quantity of Cell Cable

8

Quantity of GPS/GNSS Extension

max: 2

Quantity of WIFI Extension

max: 6

TERMINATION DATA

Connector (WIFI)

SMA (f); Reverse Polarity SMA

Connector (GPS)

SMA (m)

Connector (LTE)

SMA (m)

MOUNTING DATA

Mounting Type Fixed

Panel

Mounting Methods

Panel

APPROVALS DATA

IP Rating

IK10; IP69K

Cable Flammability

UN ECE R118

TECHNOLOGY DATA

Technology

4G/5G; 5G; 169MHz; 2G/3G/4G; Band 71 600MHz ready; CBRS; FirstNet; GPS; GNSS; WIFI MIMO; WIFI; WIFI 6E



SKU

Colour

Frequency Range | Gain

Cellular

GPS

WIFI

LPMM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

No

No

0.3m

SMA (m)

LPMM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

No

No

0.3m

SMA (m)

LGMM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

1 Module

No

0.3m

0.3m

SMA (m)

SMA (m)

LGMM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

1 Module

No

0.3m

0.3m

SMA (m)

SMA (m)

LG5MM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

1 Module

No

0.3m

0.3m

SMA (m)

SMA (m)

LG5MM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

4400 – 6000MHz | 8dBi

8×8 – 2x 4×4 MiMo

1 Module

No

0.3m

0.3m

SMA (m)

SMA (m)

LGMDM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

2 x 2 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MQM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

4 x 4 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MDM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

2 x 2 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MDM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

2 x 2 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMHM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

6 x 6 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMHM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

6 x 6 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MHM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

6 x 6 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MHM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

6 x 6 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMQM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

4 x 4 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMQM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

4 x 4 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MQM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

4 x 4 MIMO

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMOM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

8×8 MiMo

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LGMOM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

8×8 MiMo

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MOM8B-6-60

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

8×8 MiMo

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG5MOM8-6-60

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

8×8 MiMo

0.3m

0.3m

0.3m

SMA (m)

SMA (m)

SMA (f)

LG-IN2902

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

2 x 2 MIMO

5m

5m

5m

SMA (m)

SMA (m)

Reverse Polarity SMA

Cables Fitted

Cables Fitted

Cables Fitted

LG-IN2902-W

White

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

1 Module

2 x 2 MIMO

5m

5m

5m

SMA (m)

SMA (m)

Reverse Polarity SMA

Cables Fitted

Cables Fitted

Cables Fitted

LG-IN2904

Black

617 – 960MHz | 3dBi;

1427 – 4200MHz | 7dBi;

2400 – 2485MHz | 6dBi;

4400 – 6000MHz | 8dBi;

5150 – 7125MHz | 7dBi

8×8 – 2x 4×4 MiMo

2 Modules

6 x 6 MIMO

5m

5m

5m

SMA (m)

SMA (m)

Reverse Polarity SMA

Cables Fitted

Cables Fitted

Cables Fitted
